700A1R0BP150XT
ActiveKYOCERA AVX
CAP CER 1PF 150V C0G/NP0 0505
700A1R0BP150XT
ActiveKYOCERA AVX
CAP CER 1PF 150V C0G/NP0 0505
Description
General part information
700A1R0BP150XT

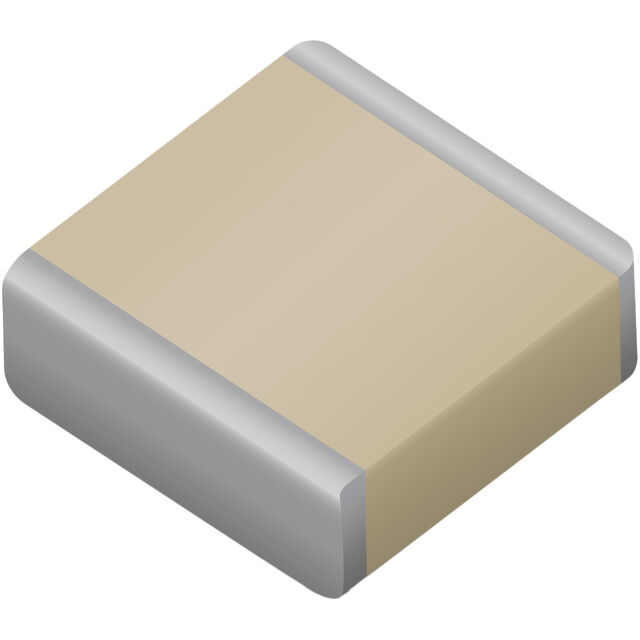

1 pF ±0.1pF 150V Ceramic Capacitor C0G, NP0 0505 (1313 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 700A1R0BP150XT |
|---|---|
| Applications | RF, Bypass, Decoupling, High Frequency, Microwave |
| Capacitance | 1 pF |
| Features | Low ESL |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0505 (1313 Metric) |
| Size / Dimension Length | 0.055 in |
| Size / Dimension Width | 0.055 in |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 0.057 in |
| Tolerance | 0.1 pF |
| Voltage - Rated | 150 VAC |
