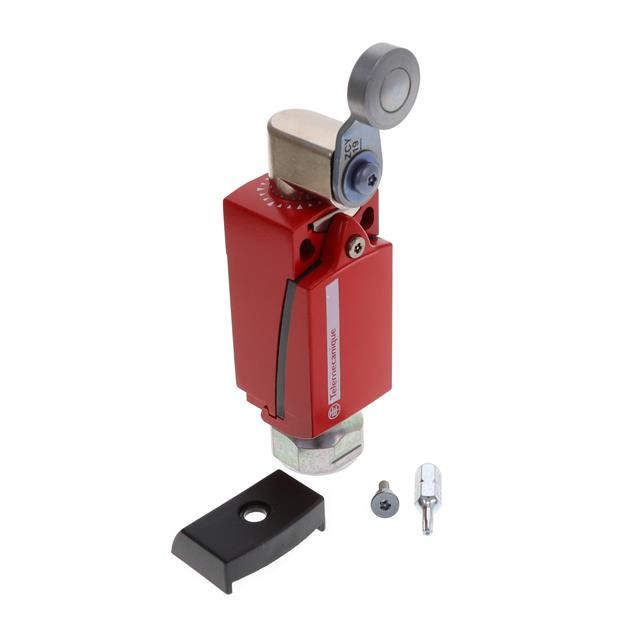

XCSD3719G13
ActiveSCHNEIDER ELECTRIC
SWITCH SAFETY LMT 3PST 1.5A 240V
XCSD3719G13
ActiveSCHNEIDER ELECTRIC
SWITCH SAFETY LMT 3PST 1.5A 240V
Description
General part information
XCSD3719G13
Switch 3PST-2NC/1NO Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | XCSD3719G13 |
|---|---|
| Actuator Type | Side Rotary, Roller |
| Circuit | 3PST-2NC/1NO |
| Current Rating | 100 mA, 1.5 A |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off, Off-On |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
