LCCA30603-FT1
ActivePasternack
SMA F TO BNC FBH USING LC085TBJ,
LCCA30603-FT1
ActivePasternack
SMA F TO BNC FBH USING LC085TBJ,
Description
General part information
LCCA30603-FT1

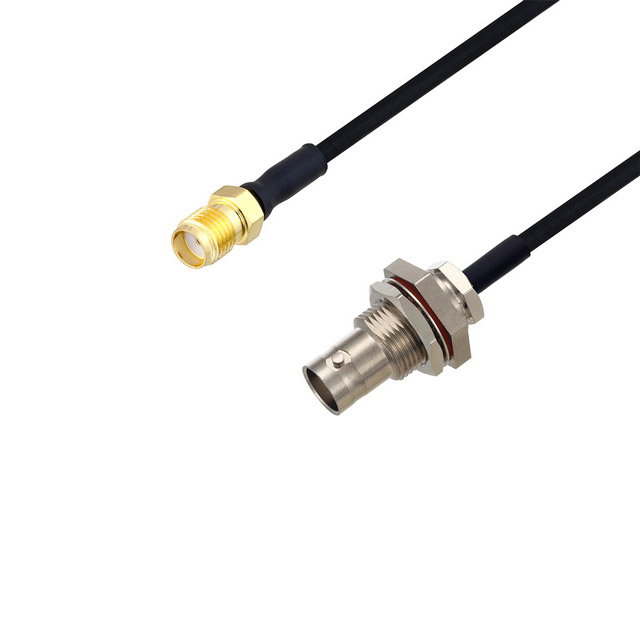

Cable Assembly Coaxial BNC to SMA LC085TBJ 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30603-FT1 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 1 GHz |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
