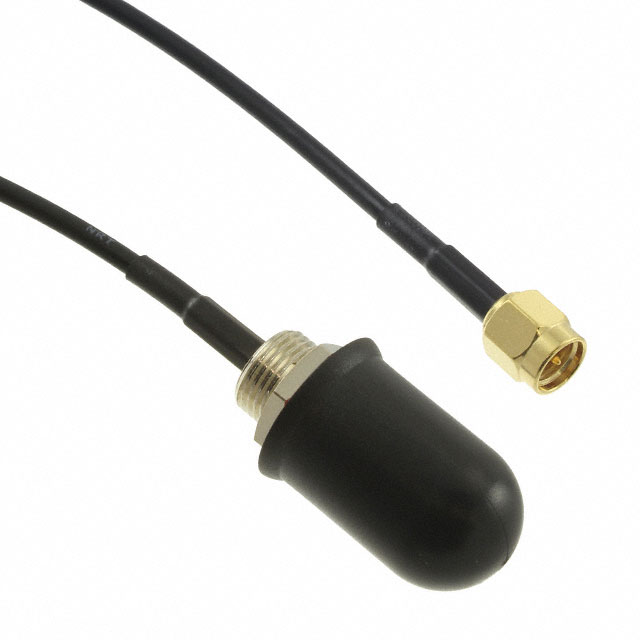

ANT-2.4-WRT-MON-SMA

ANT-2.4-WRT-MON-SMA

Active
TE Connectivity AMP Connectors

RF ANT 2.4GHZ DOME SMA ML PNL MT

Find alt
ANT-2.4-WRT-MON-SMA

ANT-2.4-WRT-MON-SMA

Active
TE Connectivity AMP Connectors

RF ANT 2.4GHZ DOME SMA ML PNL MT

Find alt

Description

General part information

ANT-2.4 Series

Dome/Puck Antenna, Single Band, Bluetooth / ISM / Zigbee, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain

Technical Specifications

Parameters and characteristics for this part

SpecificationANT-2.4-WRT-MON-SMA
Antenna TypeDome
ApplicationsZigbee™, Wi-Fi, Thread, Bluetooth
FeaturesCable, 216mm
Frequency (Band)2.5 GHz
Frequency (Center)2.4 GHz
Frequency GroupUHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Max)2.5 GHz
Frequency Range (Min)2.4 GHz
Gain0.8 dBi
Height (Max)1.063 in
Mounting TypePanel Mount
Number of Bands1
RF Family/Standard802.15.4, Bluetooth, WiFi
Termination TypeSMA Male
VSWR1.9
