CTX10-10-52-R
ActiveEaton - Electronics Division
FIXED IND 10UH 16.9A 5.1 MOHM TH
CTX10-10-52-R
ActiveEaton - Electronics Division
FIXED IND 10UH 16.9A 5.1 MOHM TH
Description
General part information
CTX10-10-52-R

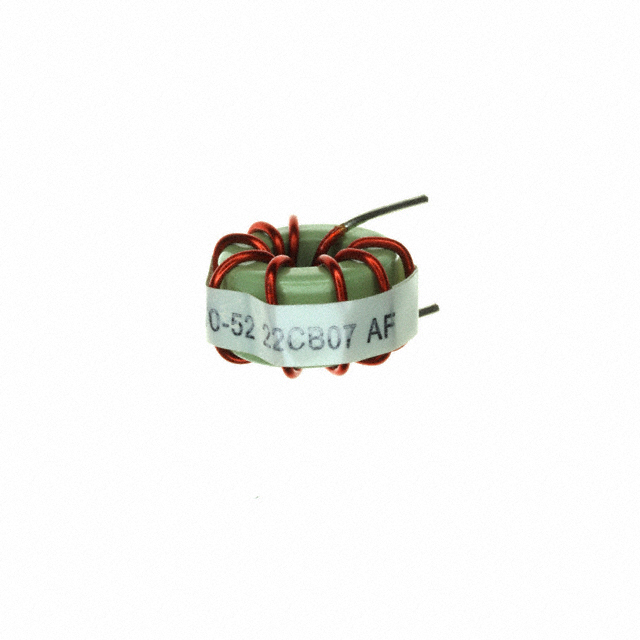

10 µH Unshielded Toroidal Inductor 16.9 A 5.1mOhm Max Radial, Vertical (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | CTX10-10-52-R |
|---|---|
| Current - Saturation (Isat) | 20.9 A |
| Current Rating | 16.9 A |
| DC Resistance (DCR) (Max) | 5.1 mOhm |
| Inductance | 10 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Iron Powder |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Vertical (Open) |
| Shielding | Unshielded |
| Size / Dimension Diameter | 1.339 in |
| Size / Dimension Width | 0.843 in |
| Tolerance | 20 % |
| Type | Toroidal |
