BTB5MD
ActivePasternack
RF TERMINATOR, BNC TERMINATOR PLUG, 50 OHM
BTB5MD
ActivePasternack
RF TERMINATOR, BNC TERMINATOR PLUG, 50 OHM
Description
General part information
BTB5MD

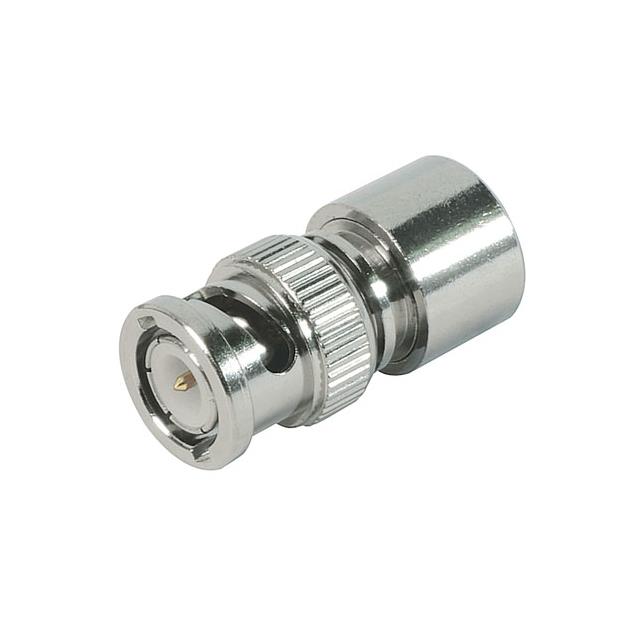

The BTB5MD is a BNC Male Terminator with gold-plated brass contacts. This BNC male terminator utilizes a 1/4W carbon film type resistor and a 50Ω impedance value. Connector body is marked with 50Ω value to assure proper installation. It is suitable for RG58 cable.
Technical Specifications
Parameters and characteristics for this part
| Specification | BTB5MD |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Finish | Gold |
| Contact Material | Brass |
| Dielectric Material | Polyoxymethylene (POM) Acetal |
| Impedance | 50 Ohm |
| Mounting Type | Cap, Free Hanging |
