28R1654-010
ActiveLaird Technologies EMI
FERRITE CORE 84 OHM SOLID
28R1654-010
ActiveLaird Technologies EMI
FERRITE CORE 84 OHM SOLID
Description
General part information
28R1654-010

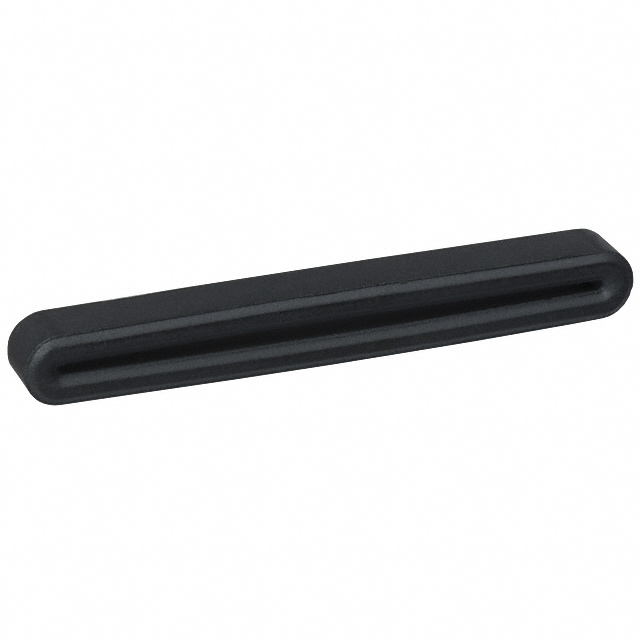

Solid Free Hanging Ferrite Core 84Ohm @ 100MHz ID 1.476" W x 0.028" H (37.50mm x 0.70mm) OD 1.654" W x 0.197" H (42.00mm x 5.00mm) Length 0.197" (5.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 28R1654-010 |
|---|---|
| Design | Solid |
| Impedance | 84 Ohm |
| Inner Dimension Height | 0.028 in |
| Inner Dimension Width | 1.476 in |
| Length | 0.197 in |
| Material | 28 |
| Material Temperature Rating | 28 °C |
| Mounting Type | Free Hanging |
| Outer Dimension Height | 0.197 in |
| Outer Dimension Width | 1.654 in |
| Type | Flat |
