5-103671-4
ActiveTE Connectivity AMP Connectors

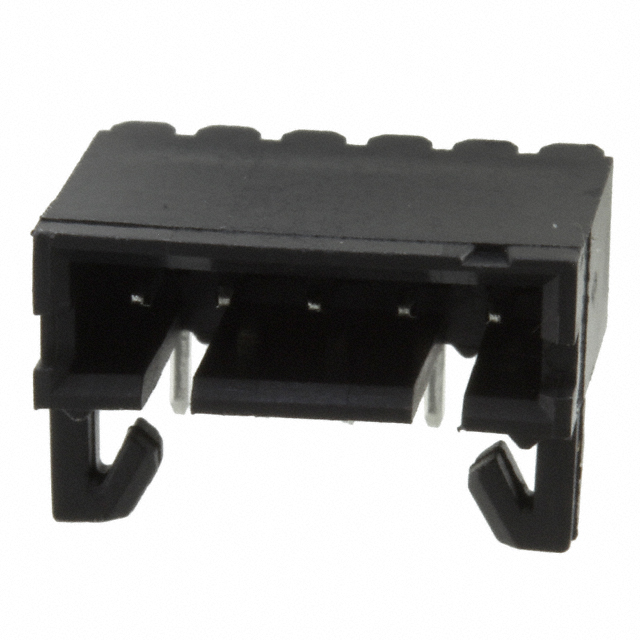

CONN HEADER VERT 5POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-103671-4
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 5POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-103671-4 |
|---|---|
| Applications | Medical, General Purpose, Automotive, Telecommunications |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Latch Holder |
| Features | Board Lock, Keying Slot |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2520 | $ 1.74 | |
103671 Series
CONN HEADER VERT 5POS 2.54MM
| Part | Features | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Material | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Applications | Contact Length - Mating [x] | Contact Length - Mating | Number of Positions Loaded | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Termination | Mounting Type | Material Flammability Rating | Contact Finish - Post | Fastening Type | Insulation Material | Contact Type | Connector Type | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-103671-4 | Board Lock, Keying Slot | 0.13 in | 3.3 mm | Black | Brass | Board to Board, Cable | 2.54 çm | 100 çin | Automotive, General Purpose, Medical, Telecommunications | 0.23 in | 5.84 mm | All | -65 ░C | 105 ░C | Shrouded - 4 Wall | Solder | Through Hole | UL94 V-0 | Tin | Latch Holder | Liquid Crystal Polymer (LCP) | Male Pin | Header | 1 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | Square |
Description
General part information
103671 Series
Connector Header Through Hole 5 position 0.100" (2.54mm)
Documents
Technical documentation and resources
