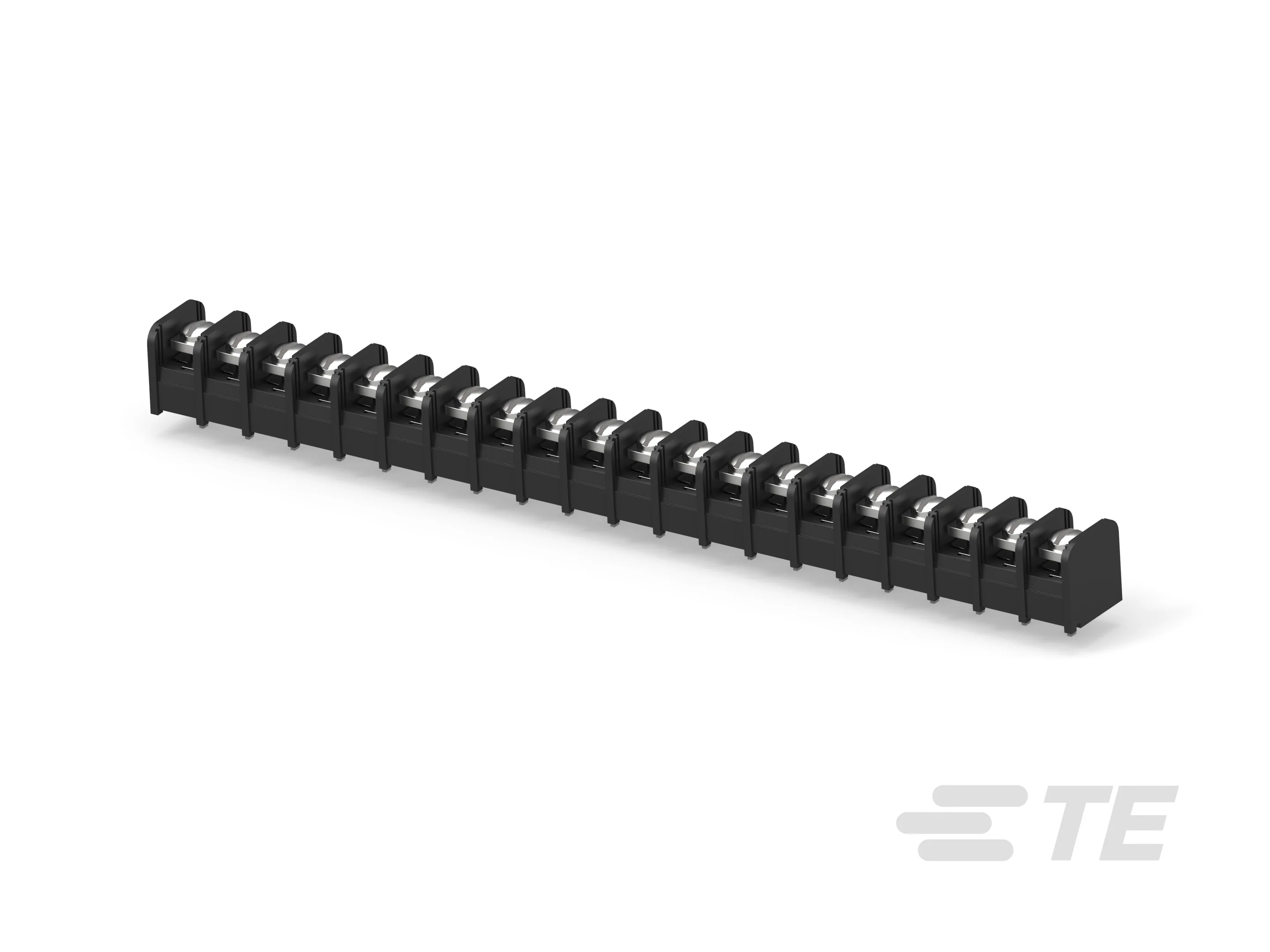

BUCHANAN NC6 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Material - Insulation	Mounting Type	Terminal Screw Material	Terminal Screw Finish	Color	Number of Wire Entries	Current Rating	Number of Rows	Top Termination	Voltage Rating	Barrier Type	Bottom Termination	Pitch	Number of Circuits	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Terminal Block Type
TE Connectivity AMP Connectors NC6-P108-18	-40 °C	105 °C	UL94 V-0	Nylon PA Polyamide	Through Hole	Steel	Zinc	Black	18	20 A	1	Screws with Captive Plate	300 VAC/DC	2 Wall (Dual)	PC Pin	0.375 in	18	12 AWG	22 AWG	Barrier Block
TE Connectivity AMP Connectors NC6-P108-22	-40 °C	105 °C	UL94 V-0	Nylon PA Polyamide	Through Hole	Steel	Zinc	Black	22	20 A	1	Screws with Captive Plate	300 VAC/DC	2 Wall (Dual)	PC Pin	0.375 in	22	12 AWG	22 AWG	Barrier Block
TE Connectivity AMP Connectors NC6-P108-15	-40 °C	105 °C	UL94 V-0	Nylon PA Polyamide	Through Hole	Steel	Zinc	Black	15	20 A	1	Screws with Captive Plate	300 VAC/DC	2 Wall (Dual)	PC Pin	0.375 in	15	12 AWG	22 AWG	Barrier Block
TE Connectivity AMP Connectors NC6-P108-24	-40 °C	105 °C	UL94 V-0	Nylon PA Polyamide	Through Hole	Steel	Zinc	Black	24	20 A	1	Screws with Captive Plate	300 VAC/DC	2 Wall (Dual)	PC Pin	0.375 in	24	12 AWG	22 AWG	Barrier Block
TE Connectivity AMP Connectors NC6-P107-24	-40 °C	105 °C	UL94 V-0	Nylon PA Polyamide	Through Hole	Steel	Clear Chromate Zinc	Black	24	20 A	1	Screws	300 VAC/DC	2 Wall (Dual)	PC Pin	0.375 in	24	12 AWG	22 AWG	Barrier Block

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
