FMANFP1040
ActiveFairview Microwave
ANTENNA SMA PLUG 2.4 MHZ-7.125 G
FMANFP1040
ActiveFairview Microwave
ANTENNA SMA PLUG 2.4 MHZ-7.125 G
Description
General part information
FMANFP1040

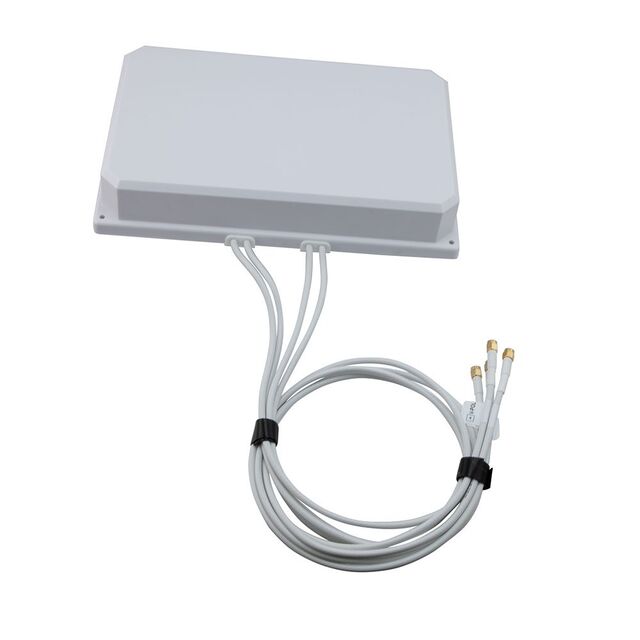

RF ANTENNA Bluetooth, Wi-Fi, Zigbee™ Flat Panel RP-SMA Male Pole Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMANFP1040 |
|---|---|
| Antenna Type | Flat Panel |
| Applications | Wi-Fi, Bluetooth, Zigbee™ |
| Features | 914.4mm, Cable |
| Frequency (Center/Band) | 4.762 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 7.125 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 6.5 dBi |
| Height (Max) | 1.97 in |
| Mounting Type | Pole Mount |
| Number of Bands | 1 |
| Power - Max | 20 W |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination Type | RP-SMA Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
