320555
ActiveTE Connectivity AMP Connectors

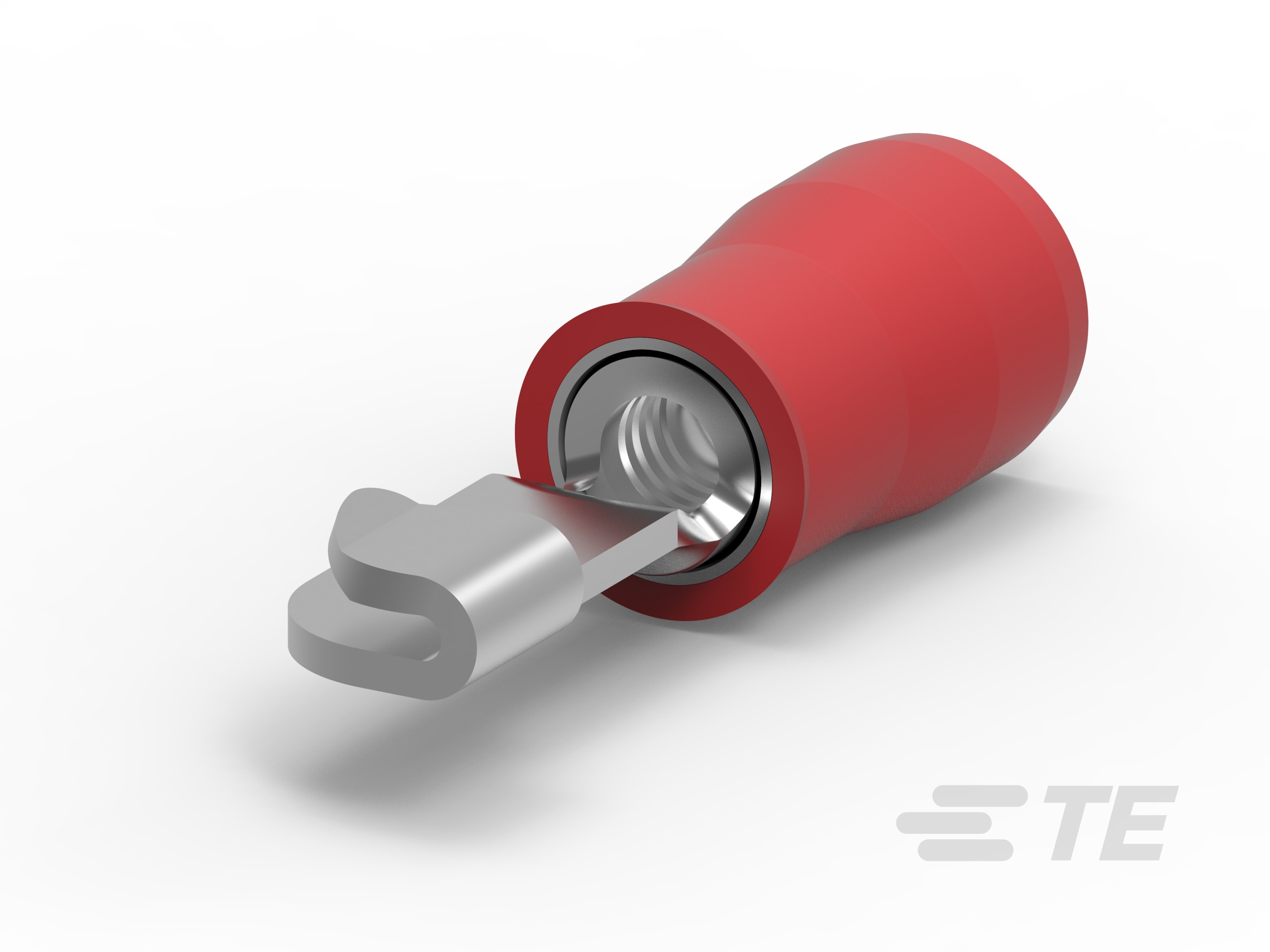

KNIFE DISCONNECT,N PIDG 22-16
320555
ActiveTE Connectivity AMP Connectors
KNIFE DISCONNECT,N PIDG 22-16
Description
General part information
320555
Tin, Wire Insulation Support, 22 – 16 AWG, .26 – 1.65 mm² Wire, .561 – 3.26 kcmil, Loose Piece, Partially Insulated, PIDG, Knife Disconnects
Technical Specifications
Parameters and characteristics for this part
| Specification | 320555 |
|---|---|
| Color | Red |
| Height Stacking (Mating) | 0.203 in |
| Insulation | Insulated |
| Length - Overall | 0.878 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
