HSTBD1/4
ActiveAmphenol TPC Wire & Cable
HEATSHRINK 3:1, 1/4" X 250'
HSTBD1/4
ActiveAmphenol TPC Wire & Cable
HEATSHRINK 3:1, 1/4" X 250'
Description
General part information
HSTBD1/4

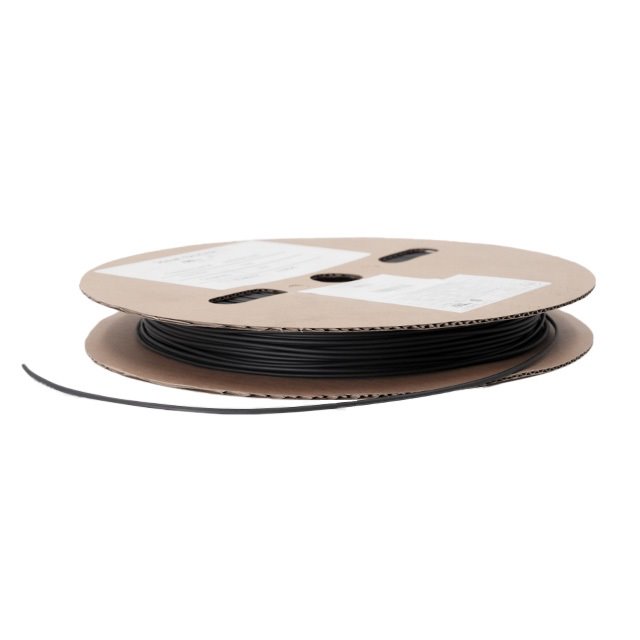

Heat Shrink Tubing, Flexible 0.252" (6.40mm) 3 to 1 Black
Technical Specifications
Parameters and characteristics for this part
| Specification | HSTBD1/4 |
|---|---|
| Color | Black |
| Features | Chemical Resistant, Fluid Resistant |
| Inner Diameter - Recovered | 0.039 in |
| Inner Diameter - Supplied | 0.252 in |
| Material | Polyolefin (PO) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Recovered Wall Thickness | 0.047 in |
| Shelf Life | 24 Months |
| Shrink Temperature | 70 °C |
| Shrinkage Ratio | 3 |
| Storage/Refrigeration Temperature | Room Temperature |
| Type | Flexible, Tubing |
