MS183-10C

Active

Masach Tech Ltd.

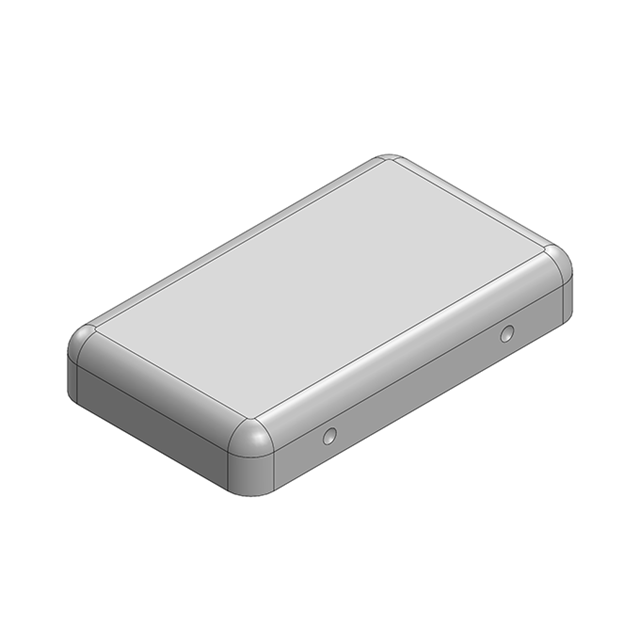

RF SHIELD 0.437X0.744" SNAP FIT

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.437X0.744" SNAP FIT

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.413"X0.720" SOLDER

Part	Width - Overall [y]	Width - Overall [y]	Ventilation	Type	Length - Overall [x]	Length - Overall [x]	Mounting Type	Height - Overall [z]	Height - Overall
Masach Tech Ltd. MS183-10S	10.5 mm	0.413 in	Non-Vented	Shield, 1-Piece	0.72 in	18.3 mm	Solder	0.118 in	3 mm
Masach Tech Ltd. MS183-10F	10.5 mm	0.413 in		Frame	0.72 in	18.3 mm	Solder	0.118 in	3 mm
Masach Tech Ltd. MS183-10C	11.1 mm	0.437 in	Non-Vented	Cover			Snap Fit	0.118 in	3 mm
Masach Tech Ltd. MS183-10C-NS	11.1 mm	0.437 in	Non-Vented	Cover			Snap Fit	0.118 in	3 mm
Masach Tech Ltd. MS183-10S-NS	10.5 mm	0.413 in	Non-Vented	Shield, 1-Piece	0.72 in	18.3 mm	Solder	0.118 in	3 mm
Masach Tech Ltd. MS183-10F-NS	10.5 mm	0.413 in		Frame	0.72 in	18.3 mm	Solder	0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Shield Cover 0.437" (11.10mm) X 0.744" (18.90mm) Non-Vented Snap Fit

Technical documentation and resources
