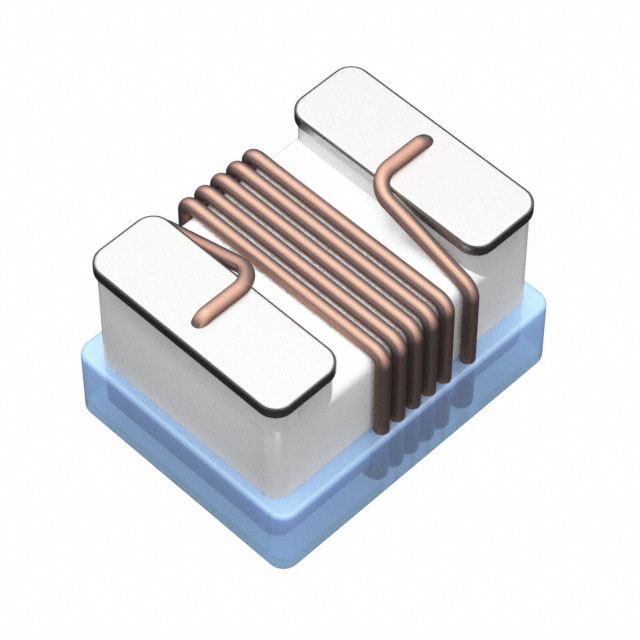

0805CS-272EKTS

Obsolete

Delta Electronics/Components

FIXED IND 2.7UH 150MA 3.1OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0805CS-272EKTS

Obsolete

Delta Electronics/Components

FIXED IND 2.7UH 150MA 3.1OHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0805CS-272EKTS	0805CS Series

Current Rating (Amps)	150 mA	0.09 - 800 mA
DC Resistance (DCR)	3.1 Ohm	1 - 700 mOhm
DC Resistance (DCR)	-	460 mOhm
Frequency - Self Resonant	50 MHz	1 - 920 GHz
Height - Seated (Max)	-	1.45 mm
Height - Seated (Max) [Max]	0.061 in	0.061 in
Height - Seated (Max) [Max]	1.55 mm	0.057 - 1.55 mm
Inductance	2.7 µH	0.68 - 910 nH
Inductance Frequency - Test	7.9 MHz	7.9 - 250 MHz
Material - Core	Ceramic	Ceramic, Ferrite
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	85 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	0805	0805
Q @ Freq	7.9 MHz, 16	1 - 500
Shielding	Unshielded	Unshielded
Size / Dimension [x]	2.29 mm	2.29 mm
Size / Dimension [x]	0.09 "	0.09 "
Size / Dimension [y]	1.8 mm	1.71 - 1.8 mm
Size / Dimension [y]	0.071 in	0.067 - 0.071 in
Supplier Device Package	0805	0805
Tolerance	10 %	2 - 10 %
Type	Wirewound, Drum Core	Wirewound, Drum Core

0805CS Series

FIXED IND 110NH 400MA 480MOHM SM

...

Part	Q @ Freq	Inductance Frequency - Test	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Supplier Device Package	Mounting Type	Frequency - Self Resonant	Type	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Shielding	Material - Core	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance
Delta Electronics/Components 0805CS-111EGTS	50, 250 MHz	150 MHz	480 mOhm	0.061 in	1.55 mm	0805	0805	Surface Mount	1 GHz	Drum Core, Wirewound	400 mA	1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	110 nH	125 °C	-40 °C	2 %
Delta Electronics/Components 0805CS-151EKTS	50, 250 MHz	100 MHz	560 mOhm	0.061 in	1.55 mm	0805	0805	Surface Mount	920 MHz	Drum Core, Wirewound	400 mA	1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	150 nH	125 °C	-40 °C	10 %
Delta Electronics/Components 0805CS-470EJTS	60, 500 MHz	200 MHz	310 mOhm	0.061 in	1.55 mm	0805	0805	Surface Mount	1.65 GHz	Drum Core, Wirewound	0.5 A	1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	47 nH	125 °C	-40 °C	5 %
Delta Electronics/Components 0805CS-330EJTS	60, 500 MHz	250 MHz	270 mOhm	0.061 in	1.55 mm	0805	0805	Surface Mount	2.05 GHz	Drum Core, Wirewound	0.5 A	1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	33 nH	125 °C	-40 °C	5 %
Delta Electronics/Components 0805CS-182EKTS	7.9 MHz, 16	7.9 MHz	2.5 Ohm	0.061 in	1.55 mm	0805	0805	Surface Mount	80 MHz	Drum Core, Wirewound	0.17 A	1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	1.8 µH	125 °C	-40 °C	10 %
Delta Electronics/Components 0805CS-220EKTS	55, 500 MHz	250 MHz	220 mOhm	0.061 in	1.55 mm	0805	0805	Surface Mount	2.6 GHz	Drum Core, Wirewound	0.5 A	1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	22 nH	125 °C	-40 °C	10 %
Delta Electronics/Components 0805CS-561EJTS	23, 50 MHz	25 MHz		0.061 in	1.55 mm	0805	0805	Surface Mount	235 MHz	Drum Core, Wirewound	0.23 A	1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	560 nH	125 °C	-40 °C	5 %
Delta Electronics/Components 0805CS-910EKTS	65, 500 MHz	150 MHz	480 mOhm	0.061 in	1.55 mm	0805	0805	Surface Mount	1.2 GHz	Drum Core, Wirewound	400 mA	1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	91 nH	125 °C	-40 °C	10 %
Delta Electronics/Components 0805CS-681EGTS	23, 50 MHz	25 MHz	2.2 Ohm	0.061 in	1.55 mm	0805	0805	Surface Mount	200 MHz	Drum Core, Wirewound		1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	0.68 µH	125 °C	-40 °C	2 %
Delta Electronics/Components 0805CS-6N8EJTS	1 GHz, 50	250 MHz	110 mOhm	0.061 in	1.55 mm	0805	0805	Surface Mount	5.5 GHz	Drum Core, Wirewound	600 mA	1.8 mm	2.29 mm	0.071 in	0.09 "	Unshielded	Ceramic	6.8 nH	125 °C	-40 °C	5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

0805CS Series

2.7 µH Unshielded Drum Core, Wirewound Inductor 150 mA 3.1Ohm 0805 (2012 Metric)
