WWN1.50BK150

Active

Techflex

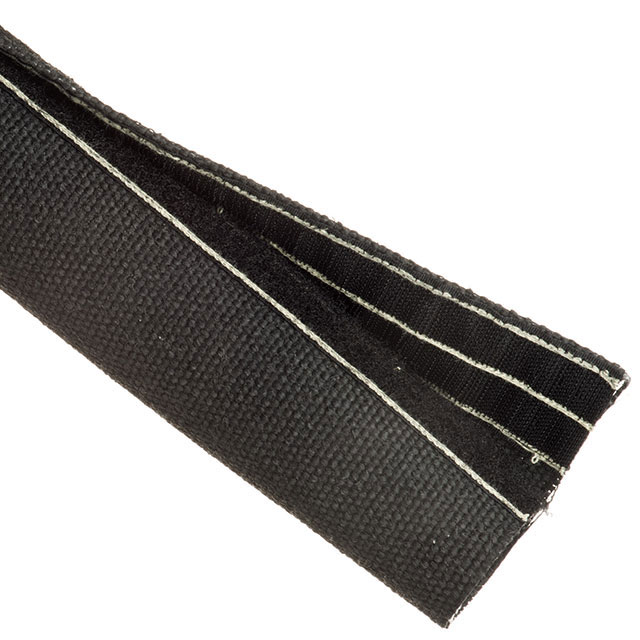

SELF WRAP 1.5" X 150' BLACK

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 1.5" X 150' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	WWN1.50BK150

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	1.5 in
Diameter - Inside, Non-Expanded [diameter]	38.1 mm
Environment Protection	UV Resistant
Features	Hook and Loop Closure Strip, Clean Cut, Chemical Resistant
Heat Protection	Flame Retardant, Heat Resistant
Length	45.72 m
Length	150 ft
Liquid Protection	Gasoline Resistant
Material	Fiberglass
Material Flammability Rating	Non Flammable
Operating Temperature [Max]	204.4 °C
Operating Temperature [Min]	-40 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.04 in
Wall Thickness	1.02 mm

SELF WRAP 1.5" X 150' BLACK

Part	Liquid Protection	Material	Wall Thickness	Wall Thickness	Material Flammability Rating	Color	Length	Length	Type	Heat Protection	Operating Temperature [Max]	Operating Temperature [Min]	Abrasion Protection	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Environment Protection	Type Attributes
Techflex WWN1.50BK150	Gasoline Resistant	Fiberglass	0.04 in	1.02 mm	Non Flammable	Black	45.72 m	150 ft	Self Wrap	Flame Retardant, Heat Resistant	204.4 °C	-40 °C	Abrasion Resistant	Chemical Resistant, Clean Cut, Hook and Loop Closure Strip	1.5 in	38.1 mm	UV Resistant	Split Flexible Tube

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 965.58

General part information

Self Wrap X 150' (45.72m) Black
