8348 0601000

Active

Belden Inc.

MULTI-PAIR 36COND 24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 36COND 24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	8348 0601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.48 in
Jacket (Insulation) Diameter [diameter]	12.19 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	36
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Voltage	Usage	Shield Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Shield Coverage	Shield Material	Wire Gauge	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Conductor Material
Belden Inc. 8348 0601000	300 V	Computer	Braid Foil	-30 ░C	80 C	Multi-Pair	65 % 100 %	Aluminum Copper Tinned	24 AWG	Chrome	0.48 in	12.19 mm	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	32 AWG	7	36	Poly-Vinyl Chloride (PVC)	1.143 mm	0.045 in	UL Style 2464	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 24.41

General part information

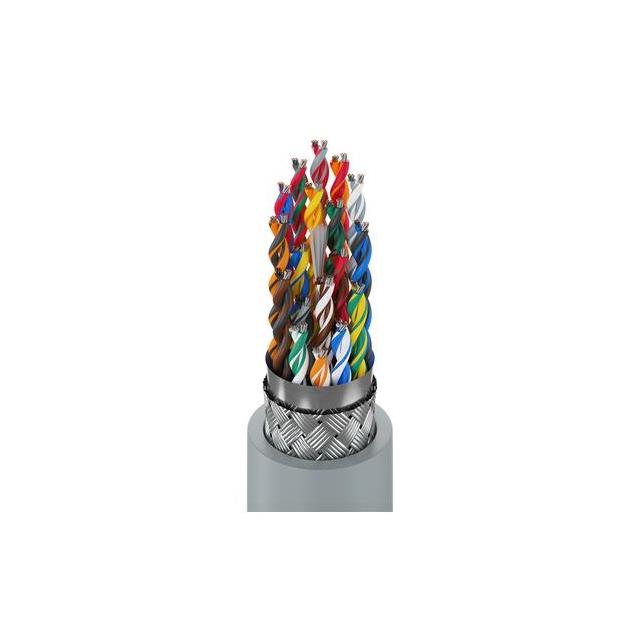

36 (18 Pair) Conductor Multi-Pair Cable Chrome 24 AWG Foil, Braid 1000.0' (304.8m)
