Description
General part information

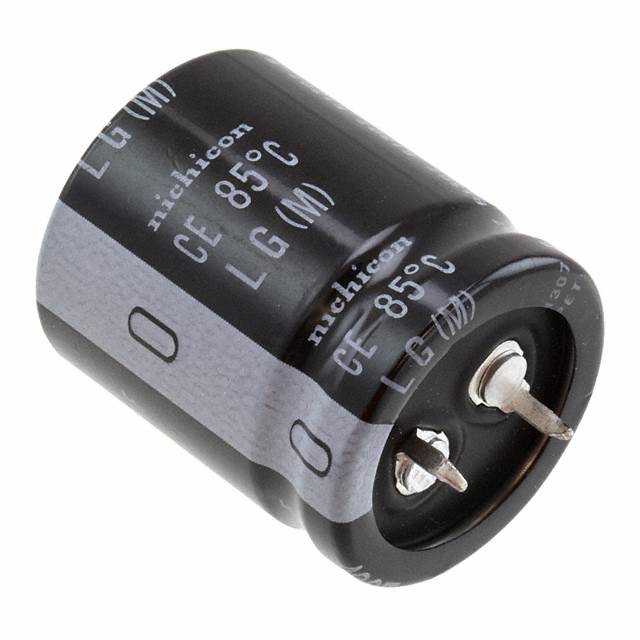

LLG2D122MELB30
1200 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LLG2D122MELB30 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1200 µF |
| Height - Seated (Max) | 1.26 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Snap-In, Radial |
| Polarization | Polar |
| Ripple Current | 4.215 A, 2.81 A |
| Size / Dimension Diameter | 1.181 in |
| Tolerance | 20 % |
| Voltage - Rated | 200 VDC |
