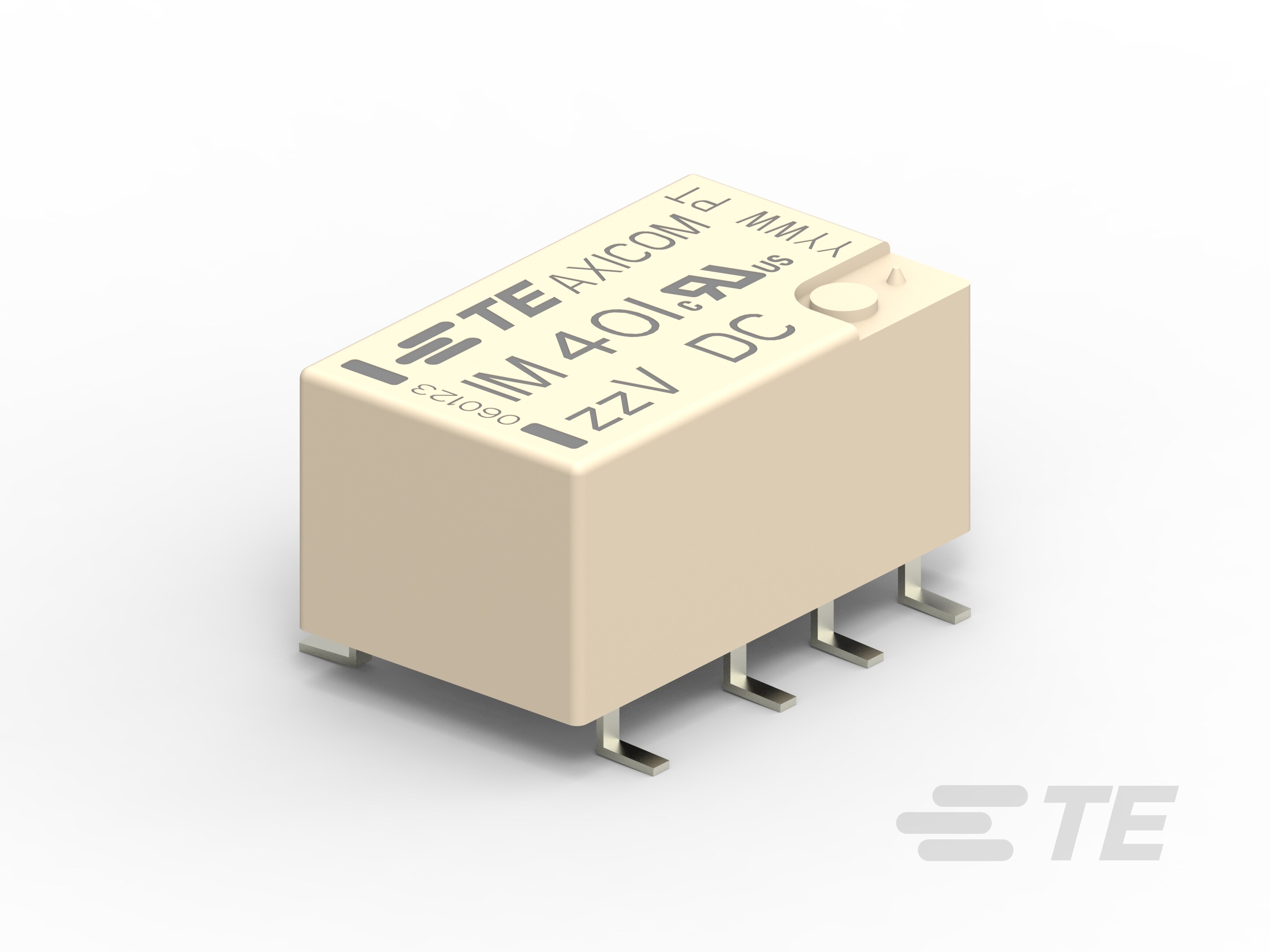

Specification	IM40IGR

Approval Agency	UR, VDE
Coil Current	65.2 mA
Coil Type	Latching, Single Coil
Coil Voltage	1.5 VDC
Contact Form	Form, 2 Form C, C, 2, DPDT
Contact Material	Gold (Au), Silver Nickel (AgNi)
Contact Rating (Current)	5 A
Load - Max Switching (Apparent Power)	62.5 VA
Load - Max Switching (Real Power)	60 W
Mounting Type	Surface Mount
Operate Time	3 ms
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Relay Type	Telecom
Release Time	3 ms
Seal Rating	Sealed, Hermetically
Switching Voltage AC (Max)	250 VAC
Switching Voltage DC (Max)	220 VDC
Termination Style	Gull Wing

Axicom IM Series

Part	Approval Agency	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Contact Form	Seal Rating	Contact Material	Coil Voltage	Coil Current	Coil Type	Relay Type	Mounting Type	Must Operate Voltage	Operate Time	Contact Rating (Current)	Release Time	Load - Max Switching (Real Power)	Load - Max Switching (Apparent Power)	Must Release Voltage	Switching Voltage DC (Max)	Switching Voltage AC (Max)	Form A Count	Coil Resistance
TE Connectivity AMP Connectors IM48GR	VDE	PC Pin	-40 °C	85 °C	2 2 Form C C DPDT Form	Hermetically Sealed	Gold (Au) Palladium (Pd) Ruthenium (Ru)	2.4 VDC	41.4 mA	Latching Single Coil	General Purpose	Through Hole
TE Connectivity AMP Connectors IM02GR	UR	Gull Wing	-40 °C	85 °C	2 2 Form C C DPDT Form	Hermetically Sealed	Gold (Au) Palladium (Pd) Ruthenium (Ru)	4.5 VDC	31.1 mA	Non Latching	Telecom	Surface Mount	3.38 VDC	3 ms	2 A	3 ms	440 W	500 VA	0.45 VDC	220 VDC	250 VAC
TE Connectivity AMP Connectors IM03DJR
TE Connectivity AMP Connectors IMB06ITS	UR	PC Pin	-40 °C	85 °C	SPST-NO	Hermetically Sealed	Gold (Au) Silver Nickel (AgNi)	12 VAC	11.7 mA	Non Latching	Telecom	Through Hole	9 VDC	3 ms	2 A	3 ms	440 W	500 VA	1.2 V	400 VDC		1
TE Connectivity AMP Connectors IM05GR	UR	Gull Wing	-40 °C	85 °C	2 2 Form C C DPDT Form	Hermetically Sealed	Gold (Au) Palladium (Pd) Ruthenium (Ru)	9 VDC	15.5 mA	Non Latching	Telecom	Surface Mount	6.75 VDC	3 ms	2 A	3 ms	440 W	500 VA	0.9 VDC	220 VDC	250 VAC		579 Ohms
TE Connectivity AMP Connectors IM44JR
TE Connectivity AMP Connectors IM43CGR
TE Connectivity AMP Connectors IM06CJR
TE Connectivity AMP Connectors IM07GR	UR	Gull Wing	-40 °C	85 °C	2 2 Form C C DPDT Form	Hermetically Sealed	Gold (Au) Palladium (Pd) Ruthenium (Ru)	24 VDC	8.3 mA	Non Latching	Telecom	Surface Mount	18 VDC	3 ms	2 A	3 ms	440 W	500 VA	2.4 V	220 VDC	250 VAC
TE Connectivity AMP Connectors IM02JR	UR	J Lead	-40 °C	85 °C	2 2 Form C C DPDT Form	Hermetically Sealed	Gold (Au) Palladium (Pd) Ruthenium (Ru)	4.5 VDC	31.1 mA	Non Latching	Telecom	Surface Mount	3.38 VDC	3 ms	2 A	3 ms	440 W	500 VA	0.45 VDC	220 VDC	250 VAC
