Description
General part information

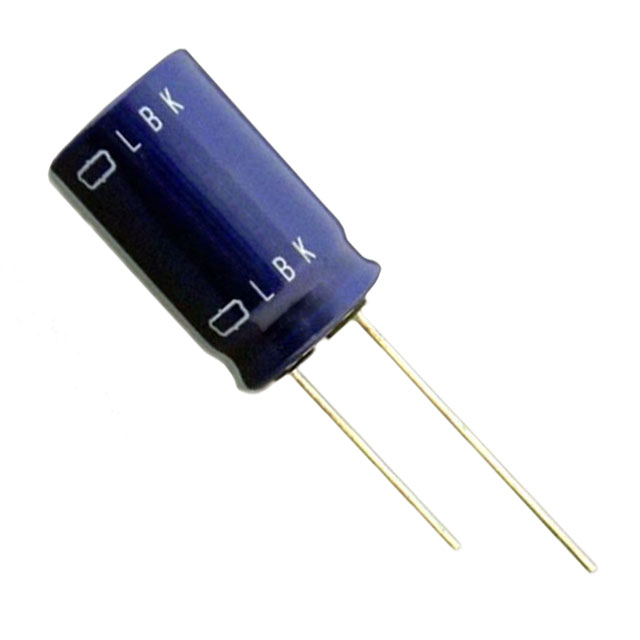

ELBK250ELL752AM25S
7500 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 22mOhm @ 100kHz 5000 Hrs @ 105°C
Technical Specifications
Parameters and characteristics for this part
| Specification | ELBK250ELL752AM25S |
|---|---|
| Applications | Automotive |
| Capacitance | 7500 µF |
| ESR (Equivalent Series Resistance) | 22 mOhm |
| Height - Seated (Max) | 1.063 in |
| Lead Spacing | 0.295 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Radial |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 2.8 A, 2.38 A |
| Size / Dimension Diameter | 0.709 in |
| Tolerance (Negative) | 0 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 25 VAC |
