JSW4-272DR+
ActiveMini-Circuits

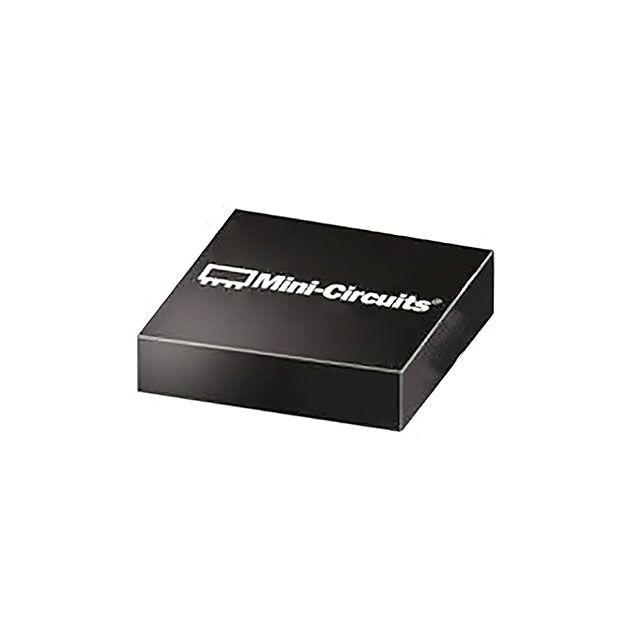

IC RF SWITCH SP4T 2.7GHZ 14QFN
JSW4-272DR+
ActiveMini-Circuits
IC RF SWITCH SP4T 2.7GHZ 14QFN
Description
General part information
JSW4-272DR+
RF Switch IC CATV, SatCom SP4T 50Ohm 14-QFN (2x2)
Technical Specifications
Parameters and characteristics for this part
| Specification | JSW4-272DR+ |
|---|---|
| Circuit | SP4T |
| Frequency Range (Max) | 2.7 GHz |
| Frequency Range (Min) | 5 MHz |
| IIP3 | 59 dBm |
| Impedance | 50 Ohm |
| Insertion Loss | 0.6 dB |
| Isolation | 27 dB |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 14-UFQFN Exposed Pad |
| Package Length | 2 mm |
| Package Name | 14-QFN |
| Package Width | 2 mm |
| RF Type | SATCOM, CATV |
| Test Frequency | 2.7 GHz |
| Topology | Reflective |
| Voltage - Supply (Maximum) | 4.8 V |
| Voltage - Supply (Minimum) | 2.5 V |
