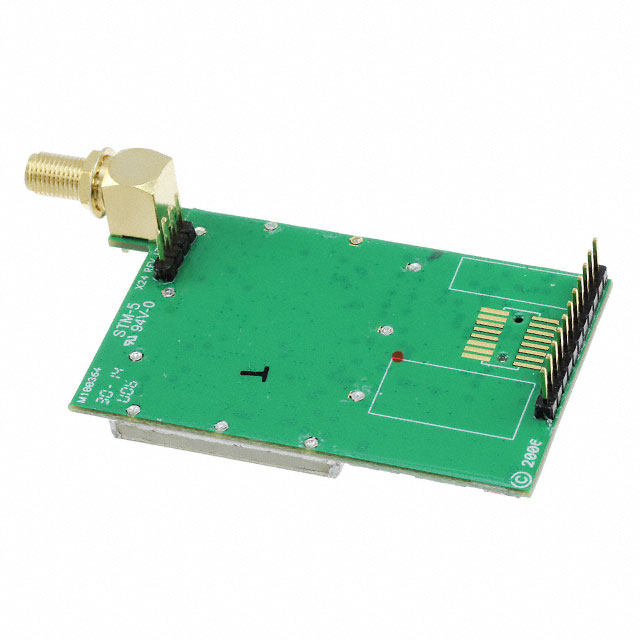

X24-009NSI
ObsoleteDigi International
RF TXRX MOD ISM>1GHZRPSMA SMD
X24-009NSI
ObsoleteDigi International
RF TXRX MOD ISM>1GHZRPSMA SMD
Description
General part information
X24-009NSI
General ISM > 1GHz Transceiver Module 2.4GHz Antenna Not Included, RP-SMA Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | X24-009NSI |
|---|---|
| Antenna Type | Antenna Not Included, RP-SMA |
| Current - Receiving | 80 mA |
| Current - Transmitting | 150 mA |
| Data Rate | 9.4 kbps |
| Frequency | 2.4 GHz |
| Modulation | FHSS |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module |
| Power - Output | 17 dBm |
| RF Family/Standard | General ISM > 1GHz |
| Sensitivity | -105 dBm |
| Serial Interfaces | UART |
| Voltage - Supply | 5 VDC |
