Description
General part information

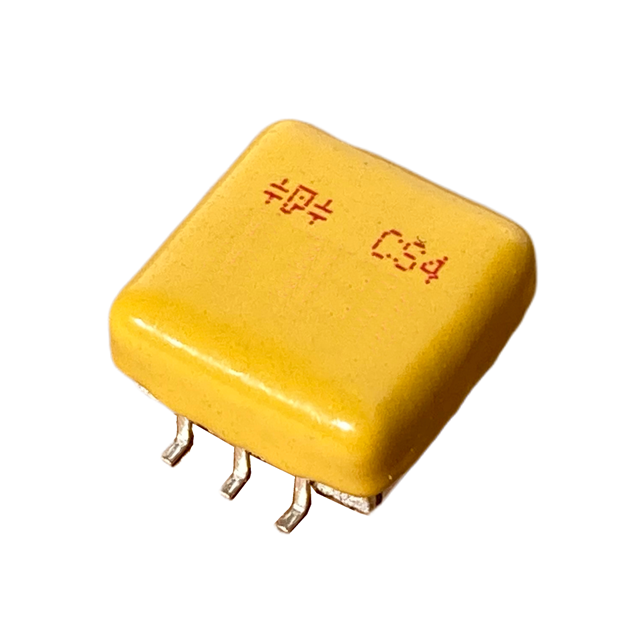

405K100CB4G
4 µF Film Capacitor 80V 100V Polyester, Metallized 6-SMD, Gull Wing
Technical Specifications
Parameters and characteristics for this part
| Specification | 405K100CB4G |
|---|---|
| Applications | DV/DT, RFI Suppression, EMI, High Pulse |
| Capacitance | 4 µF |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | 7 mOhm |
| Features | High Temperature, Low ESR |
| Height - Seated (Max) | 0.248 in |
| Lead Spacing | 0.394 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 6-SMD, Gull Wing |
| Size / Dimension Length | 0.449 in |
| Size / Dimension Width | 0.5 in |
| Termination | Gull Wing |
| Tolerance | 10 % |
| Voltage Rating - AC | 80 V |
| Voltage Rating - DC | 100 V |
