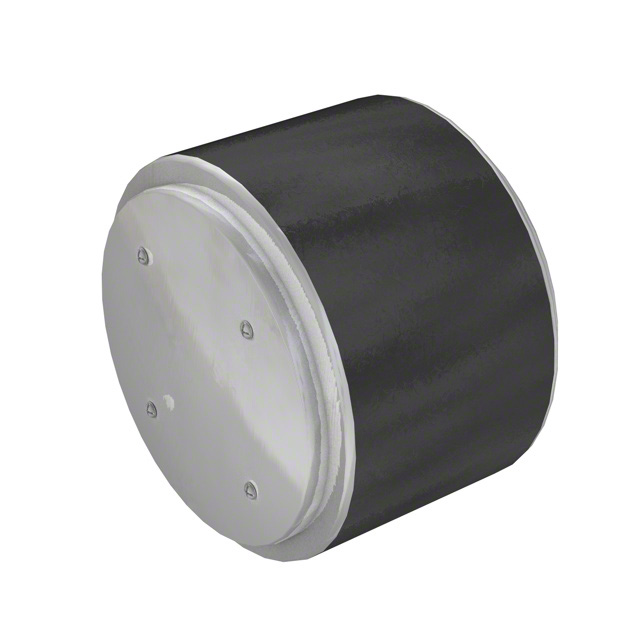

FWX-2000AH
ActiveEaton - Electronics Division
FUSE CARTRIDGE 2KA 250VAC/VDC
FWX-2000AH
ActiveEaton - Electronics Division
FUSE CARTRIDGE 2KA 250VAC/VDC
Description
General part information
FWX-2000AH
2kA 250 VAC 250 VDC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | FWX-2000AH |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UR, CSA, CE |
| Breaking Capacity | 200 kA |
| Current Rating | 2 kA |
| Fuse Type | Cartridge |
| Melting I²t | 320000 |
| Mounting Type | Requires Holder |
| Package / Case | Cartridge, Non-Standard |
| Size / Dimension Diameter | 3.5 in |
| Size / Dimension Length | 2.59 in |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
