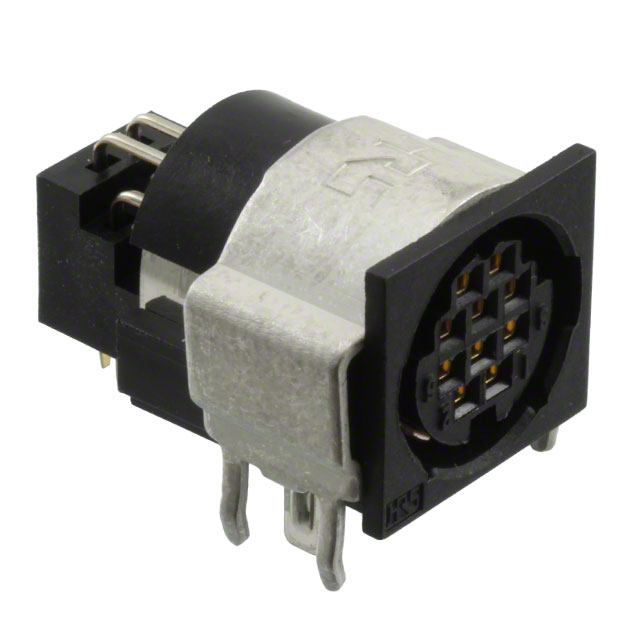

Specification	HR12-10RD-10SDL(71)

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8 µin
Contact Material	Phosphor Bronze
Fastening Type	Snap-In
Features	Ground, Board Lock
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-15 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	10
Shell Size - Insert	10
Shielding	Shielded
Termination	Solder
Voltage Rating (AC)	100 VAC
Voltage Rating (DC)	140 VDC

HR12 Series

Part	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Contact Termination	Type	Contact Finish	Termination Finish	Contact Size	Contact Material	Contact Type	Features	Mounting Feature	Contact Finish - Mating	Orientation	Connector Type	Fastening Type	Primary Material	Mounting Type	Termination	Shell Size - Insert	Shell Size - Insert	Shell Material	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Shielding	Voltage Rating (DC)	Voltage Rating (AC)	Color	Number of Positions	Contact Finish Thickness - Mating	For Use With/Related Products	Accessory Type	Shell Finish	Housing Color	Contact Shape	Insert Material	Note
Hirose Electric Co Ltd HR12-SC-213	26 AWG	30 AWG	Crimp	Signal Stamped	Tin	Phosphor Bronze	1 mm	Phosphor Bronze	Socket
Hirose Electric Co Ltd HR12-SC-111	26 AWG	30 AWG	Crimp	Signal Stamped	Gold	Phosphor Bronze	1 mm	Phosphor Bronze	Socket	Insulation Support
Hirose Electric Co Ltd HR12-SC-212	26 AWG	30 AWG	Crimp	Signal Stamped	Silver	Phosphor Bronze	1 mm	Phosphor Bronze	Socket
Hirose Electric Co Ltd HR12-10R-8SDL(71)								Phosphor Bronze		Ground	Flange	Tin	Keyed	Female Sockets Receptacle	Snap-In	Plastic	Right Angle Through Hole	Solder	10	10	Polybutylene Terephthalate (PBT)	UL94 V-0	60 °C	-15 °C	Shielded	140 VDC	100 VAC	Black	8
Hirose Electric Co Ltd HR12-SC-211	26 AWG	30 AWG	Crimp	Signal Stamped	Gold	Phosphor Bronze	1 mm	Phosphor Bronze	Socket
Hirose Electric Co Ltd HR12-10R-8SD(73)								Phosphor Bronze		Ground	Bulkhead Rear Side Nut	Gold	Keyed	Female Sockets Receptacle	Snap-In	Plastic	Panel Mount Through Hole	Solder	10	10	Polybutylene Terephthalate (PBT)	UL94 V-0	60 °C	-15 °C	Shielded	140 VDC	100 VAC	Black	8	8 µin
Hirose Electric Co Ltd HR12-10R-8SD(71)								Phosphor Bronze		Ground	Bulkhead Rear Side Nut	Tin	Keyed	Female Sockets Receptacle	Snap-In	Plastic	Panel Mount Through Hole	Solder	10	10	Polybutylene Terephthalate (PBT)	UL94 V-0	60 °C	-15 °C	Shielded	140 VDC	100 VAC	Black	8
Hirose Electric Co Ltd HR12-10R-SP(71)																			10	10								Silver			HR12 Series	Stopper Plate
Hirose Electric Co Ltd HR212-10RA-8SDL(74)										Ground		Tin	Keyed	Female Sockets Receptacle	Snap-In	Plastic	Right Angle Through Hole	Solder	10	10	Polybutylene Terephthalate (PBT)	UL94 V-0	60 °C	-15 °C	Shielded	140 VDC	100 VAC	Black Silver	8				Tin
Hirose Electric Co Ltd HR12-14RA-20SC(01)				For Female Sockets			1 mm		Crimp		Flange		Keyed	Receptacle Housing	Snap-In		Panel Mount			14	Polybutylene Terephthalate (PBT)	UL94 V-0	60 °C	-15 °C	Shielded				20					Black	Circular	PBT Polybutylene Terephthalate	Contacts Not Included
