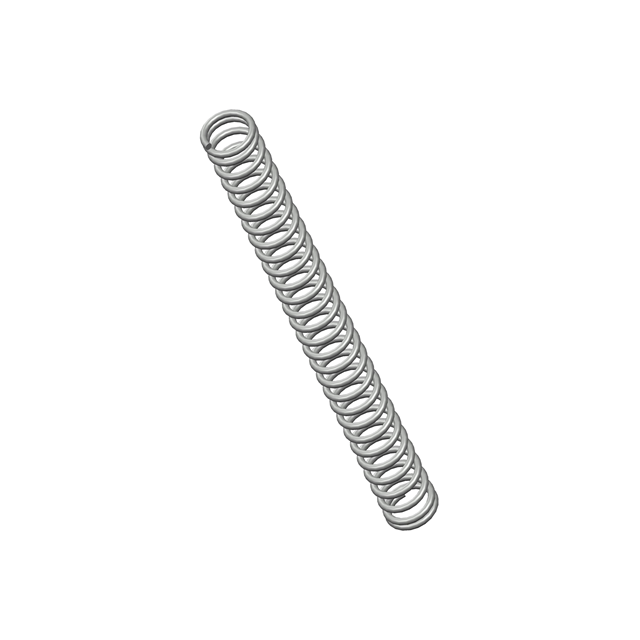

B4-21CS
ActiveCentury Spring Corp
COMP O= .234,L= 2.50,W= .030
B4-21CS
ActiveCentury Spring Corp
COMP O= .234,L= 2.50,W= .030
Description
General part information
B4-21CS
COMP O= .234,L= 2.50,W= .030
Technical Specifications
Parameters and characteristics for this part
| Specification | B4-21CS |
|---|---|
| Diameter - Inside | 0.174 in |
| Diameter - Outside | 0.234 in |
| End Style | Closed |
| Finish | None |
| Free Length | 2.5 in |
| Material | Music Wire |
| Rate (lbs/in) | 5 lbs/in |
| Type | Compression |
| Wire Diameter | 0.03 in |
