Specification	FN9222R-1-07

Accomodates a Fuse	No
Approval Agency	ENEC, UL, CQC, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	1 A
Features	Front or Rear Side Mount, Bleed Resistor
Filter Application	Commercial
Filter Subtype	EMI, RFI
Filter Type	Filtered
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Number of Positions	3
Panel Cutout Length	28.5 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	21.5 mm
Termination	Wire Leads

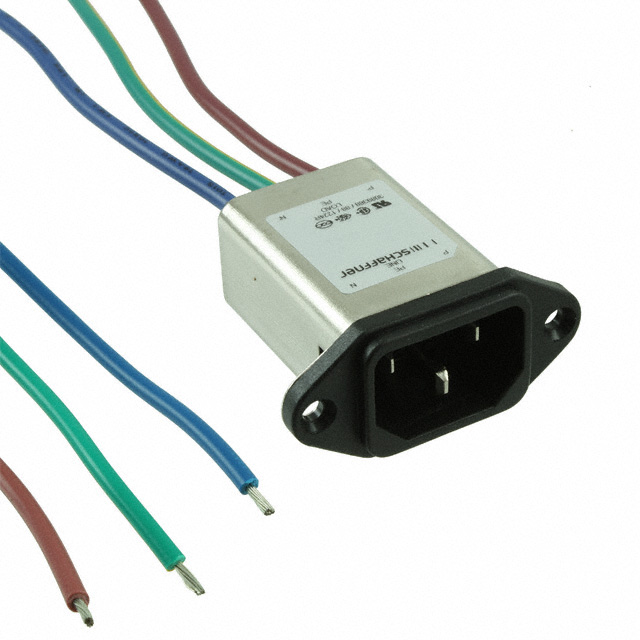

Schaffner FN9222 Series

AC Power Entry Modules IEC INLET 1A FILTER PERFORMANCE

...

Part	Accomodates a Fuse	Approval Agency	Ingress Protection	Features	Number of Positions	Current Rating - Filter	Connector Style	Material Flammability Rating	Filter Subtype	Filter Application	Filter Type	Termination Probe Tip OD	Termination	Connector Type	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Mounting Type
TE Connectivity AMP Connectors FN9222B-20-06	No	CQC CSA ENEC UL	IP40	Bleed Resistor Front or Rear Side Mount	3	10 A	IEC 320-C20	UL94 V-2	EMI RFI	Commercial Medical	Filtered	0.25 in	Quick Connect	Male Blades Receptacle	21.5 mm	Rectangular	28.5 mm	Flange Panel Mount
TE Connectivity AMP Connectors FN9222EB-12-06	No	CQC CSA ENEC UL	IP40	Bleed Resistor Earth Line Choke Front or Rear Side Mount	3	12 A	IEC 320-C14	UL94 V-2	EMI RFI	Commercial Medical	Filtered	0.25 in	Quick Connect	Male Blades Receptacle	21.5 mm	Rectangular	28.5 mm	Flange Panel Mount
TE Connectivity AMP Connectors FN9222B-20-06	No	CQC CSA ENEC UL	IP40	Bleed Resistor Front or Rear Side Mount	3	10 A	IEC 320-C20	UL94 V-2	EMI RFI	Commercial Medical	Filtered	0.25 in	Quick Connect	Male Blades Receptacle	21.5 mm	Rectangular	28.5 mm	Flange Panel Mount
TE Connectivity AMP Connectors FN9222EB-12-06	No	CQC CSA ENEC UL	IP40	Bleed Resistor Earth Line Choke Front or Rear Side Mount	3	12 A	IEC 320-C14	UL94 V-2	EMI RFI	Commercial Medical	Filtered	0.25 in	Quick Connect	Male Blades Receptacle	21.5 mm	Rectangular	28.5 mm	Flange Panel Mount
TE Connectivity AMP Connectors FN9222ER-10-06	No	CQC CSA ENEC UL	IP40	Bleed Resistor Earth Line Choke Front or Rear Side Mount	3	10 A	IEC 320-C14	UL94 V-2	EMI RFI	Commercial	Filtered	0.25 in	Quick Connect	Male Blades Receptacle	21.5 mm	Rectangular	28.5 mm	Flange Panel Mount
TE Connectivity AMP Connectors FN9222ER-10-06	No	CQC CSA ENEC UL	IP40	Bleed Resistor Earth Line Choke Front or Rear Side Mount	3	10 A	IEC 320-C14	UL94 V-2	EMI RFI	Commercial	Filtered	0.25 in	Quick Connect	Male Blades Receptacle	21.5 mm	Rectangular	28.5 mm	Flange Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet

CE_FN-Inlet

Datasheet

IEC Inlet Filters FN9222

UKCA_FN-Inlet

FN9222R-1-07 | Datasheet
