3-1377173-6
ActiveTE Connectivity AMP Connectors
CONN SPADE TERM 10-12AWG #8 YEL
3-1377173-6
ActiveTE Connectivity AMP Connectors
CONN SPADE TERM 10-12AWG #8 YEL
Description
General part information
3-1377173-6

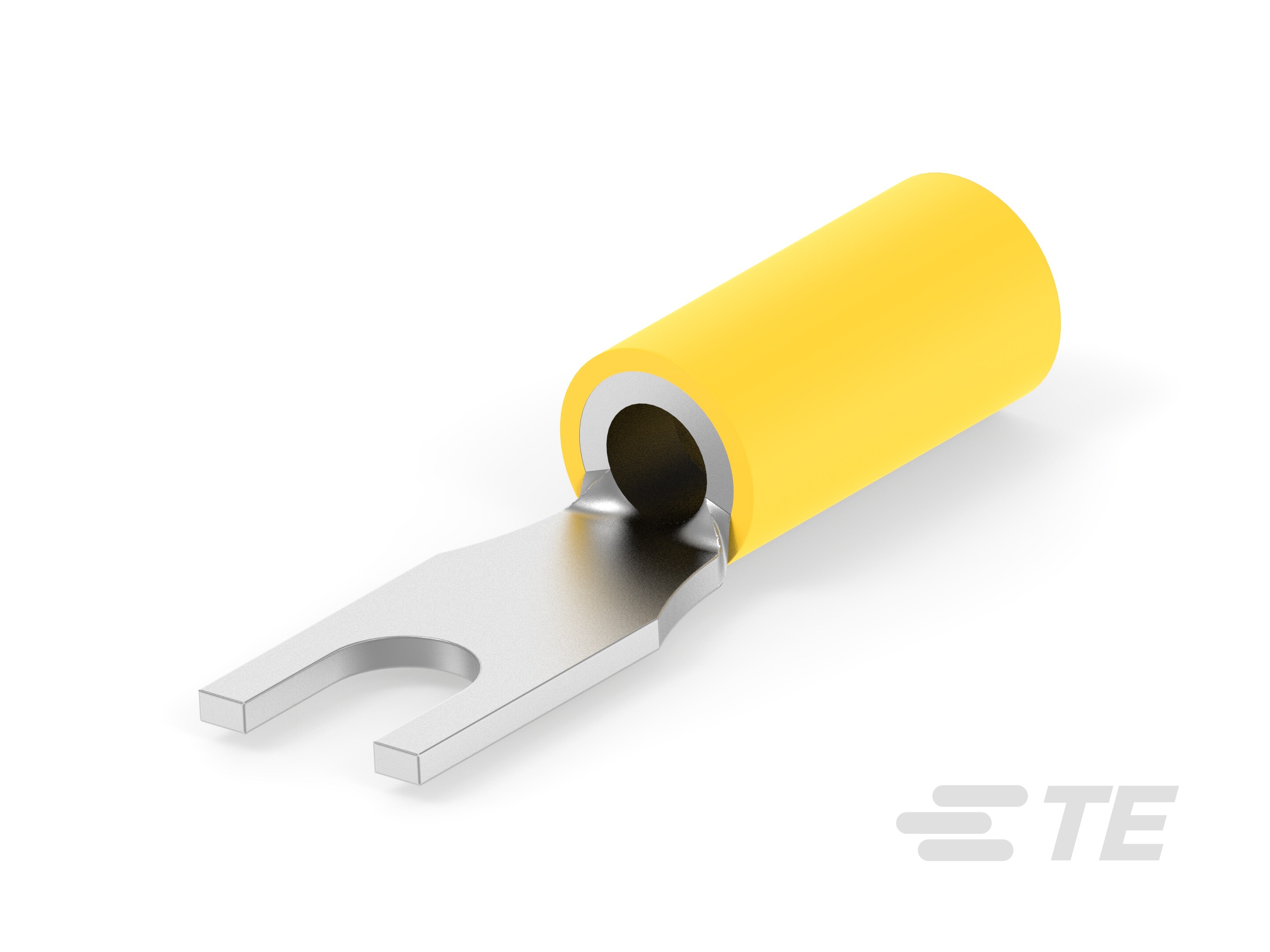

Spade Flange Tongue Terminal, 12 – 10 AWG, M4.5 Stud, 4.7 mm [.185 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1377173-6 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Serrated Termination |
| Insulation | Insulated |
| Length - Overall | 1.238 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges | 0.315 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
