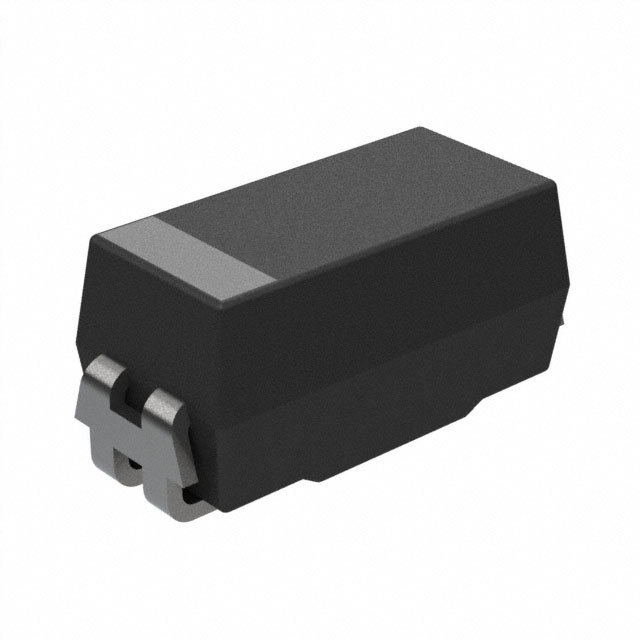

TMCMA0G475MTRF
ActiveVishay Dale
CAP TANT 4.7UF 20% 4V 1206
TMCMA0G475MTRF
ActiveVishay Dale
CAP TANT 4.7UF 20% 4V 1206
Description
General part information
TMCMA0G475MTRF
4.7 µF Molded Tantalum Capacitors 4 V 1206 (3216 Metric) 4Ohm @ 100kHz
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCMA0G475MTRF |
|---|---|
| Capacitance | 4.7 µF |
| ESR (Equivalent Series Resistance) | 4 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.071 in |
| Manufacturer Size Code | A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 4 V |
