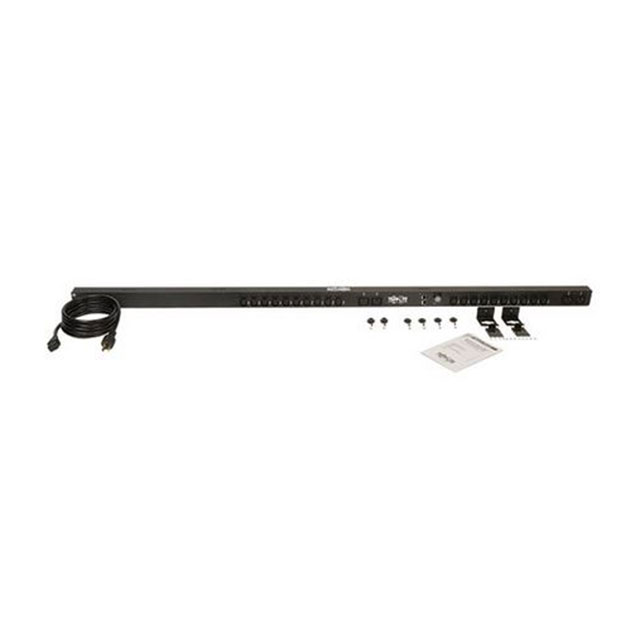

PDUMV20HVNETLX
ActiveEaton Tripp Lite
PDU SWITCHED 3.2-3.8KW 200-240V
PDUMV20HVNETLX
ActiveEaton Tripp Lite
PDU SWITCHED 3.2-3.8KW 200-240V
Description
General part information
PDUMV20HVNETLX
PDU SWITCHED 3.2-3.8KW 200-240V
Technical Specifications
Parameters and characteristics for this part
| Specification | PDUMV20HVNETLX |
|---|---|
| AC Outlets (Count) | 24 count |
| Approval Agency | FCC, CSA, UL, NOM, CE |
| Connector - AC Input | NEMA L6-20P |
| Connector - AC Output | IEC 320-C13, C19 |
| Connector - AC Output Quantity (C19) | 4 pcs |
| Connector - AC Output Quantity (IEC 320-C13) | 20 pcs |
| Cord Length | 10 ft |
| Current - Max | 20 A |
| Features | Load Meter |
| Mounting Type | Rack, Vertical |
| Region Utilized | North America |
| Type | PDU (Power Distribution Unit) |
| Voltage - Input | 230 V, 200 VAC, 220 VDC, 240 VAC, 208 VAC |
| Weight | 8.5 lbs |
