MG064S09A200DP
ActiveKYOCERA AVX
VARISTOR 12.7V 30A 0612
MG064S09A200DP
ActiveKYOCERA AVX
VARISTOR 12.7V 30A 0612
Description
General part information
MG064S09A200DP

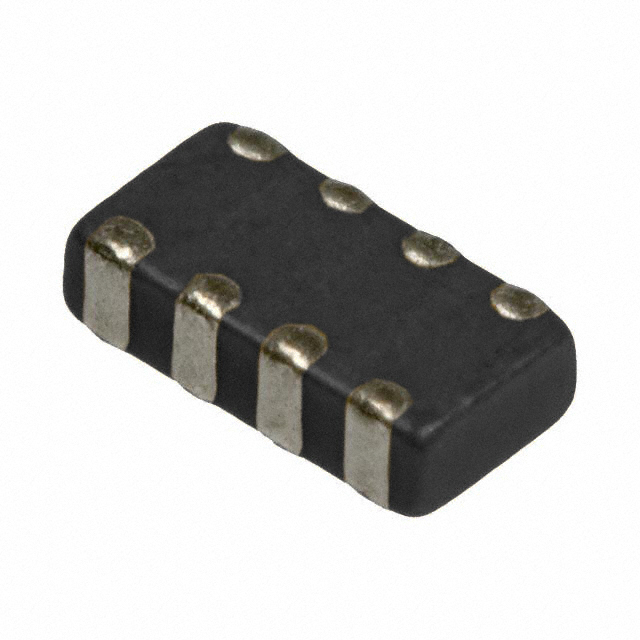

12.7 V 30 A Varistor 4 Circuit Surface Mount, MLCV 0612 (1632 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MG064S09A200DP |
|---|---|
| Capacitance | 550 pF |
| Current - Surge | 30 A |
| Energy | 0.1 J |
| Maximum AC Volts | 6.4 V |
| Maximum DC Voltage | 9 V |
| Mounting Type | MLCV, Surface Mount |
| Number of Circuits | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0612 (1632 Metric) |
| Varistor Voltage (Max) | 14.61 V |
| Varistor Voltage (Min) | 10.8 V |
| Varistor Voltage (Typ) | 12.7 V |
