Description
General part information

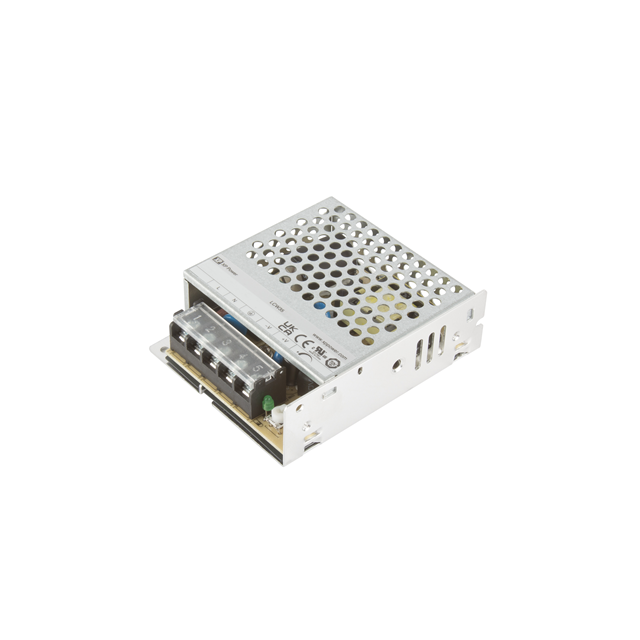

LCW35US15
Enclosed AC DC Converters 1 Output 15V 85 ~ 305 VAC, 120 ~ 430 VDC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | LCW35US15 |
|---|---|
| Applications | ITE (Commercial), Household Appliances, Industrial |
| Approval Agency | EN, UL, UKCA, CE |
| Current - Output 1 | 2.4 A |
| Efficiency | 86 % |
| Features | Adjustable Output, DC Input Capable |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 36 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 3.9 in |
| Size / Dimension Width | 3.23 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Input (DC) Maximum | 430 V |
| Voltage - Input (DC) Minimum | 120 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 15 V |
