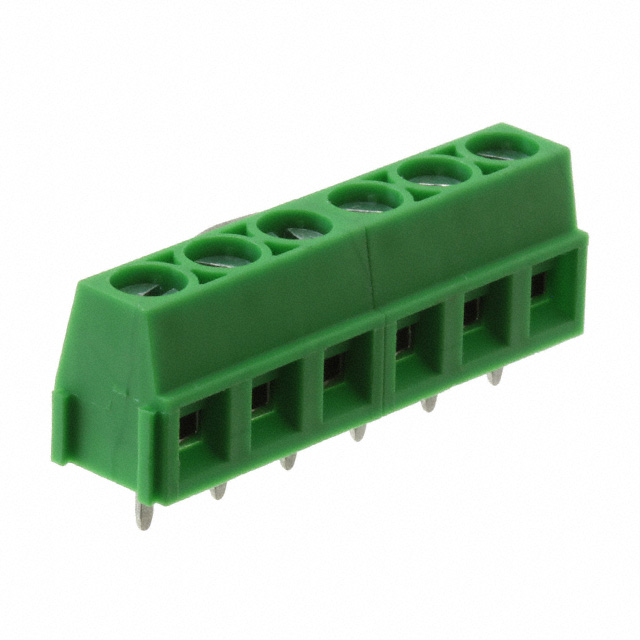

32.406
ActiveAltech Corporation
TERM BLOCK PCB FNT 6P 58MM 15A G
32.406
ActiveAltech Corporation
TERM BLOCK PCB FNT 6P 58MM 15A G
Description
General part information
32.406
6 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 32.406 |
|---|---|
| Color | Gray |
| Current | 15 A |
| Features | Interlocking (Side) |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 5.08 mm |
| Positions Per Level | 6 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Rising Cage Clamp, Screw |
