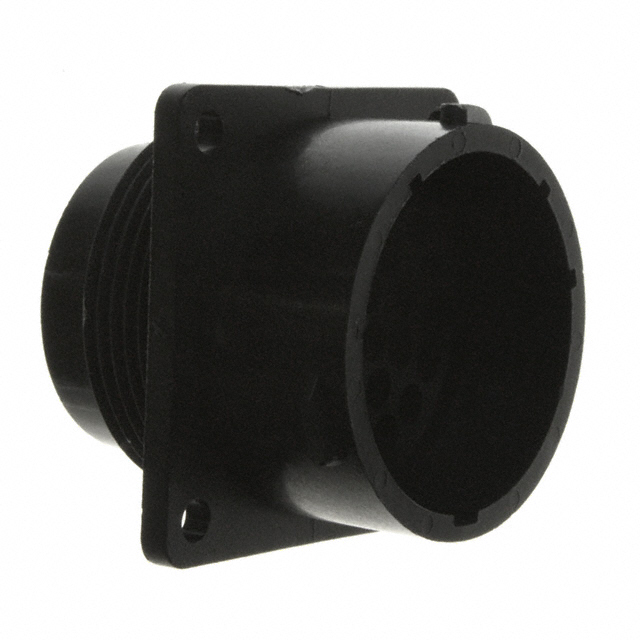

Specification	UTP02028P

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16 S
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	28
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-25 °C
Orientation	N (Normal)
Shell Material	Glass Filled, Polyester
Shell Size - Insert (Maximum)	28
Shell Size - Insert (Minimum)	20
Shielding	Unshielded
Type	For Male Pins

UTP02 Series

Part	Note	Type	Contact Shape	Fastening Type	Mounting Feature	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Housing Color	Connector Type	Orientation	Contact Type	Material Flammability Rating	Mounting Type	Number of Positions	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Size	Shielding	Shell Size - Insert Length	Shell Size - Insert Width	Ingress Protection IP Rating	Ingress Protection Description	Position Types
Amphenol Aerospace Operations UTP02235S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange	22	35	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	35	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded
Amphenol Aerospace Operations UTP02411P	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange			Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	11	Glass Filled Polyester	125 °C	-25 °C	8 16	Unshielded	24 mm	11 mm
Amphenol Aerospace Operations UTP02448S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange	24	48	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	48	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded
Amphenol Aerospace Operations UTP0247P	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange			Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	9	Glass Filled Polyester	125 °C	-25 °C	8 16	Unshielded	24 mm	7 mm
Amphenol Aerospace Operations UTP02028S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange	20	28	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	28	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded
Amphenol Aerospace Operations UTP02411PH	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange			Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	11	Glass Filled Polyester	125 °C	-25 °C	8 16	Unshielded	24 mm	11 mm	IP65	Dust Tight Water Resistant
Amphenol Aerospace Operations UTP0247S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange			Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	9	Glass Filled Polyester	125 °C	-25 °C	8 16	Unshielded	24 mm	7 mm			PE
Amphenol Aerospace Operations UTP02235P	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange	22	35	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	35	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded
Amphenol Aerospace Operations UTP02448P	Contacts Not Included	For Male Pins	Circular	Bayonet Lock	Flange	24	48	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	48	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded
Amphenol Aerospace Operations UTP02020S	Contacts Not Included	For Female Sockets	Circular	Bayonet Lock	Flange	20	20	Black	Receptacle Housing	N (Normal)	Crimp	UL94 V-0	Panel Mount	20	Glass Filled Polyester	125 °C	-25 °C	16 S	Unshielded					PE
