PJ-023

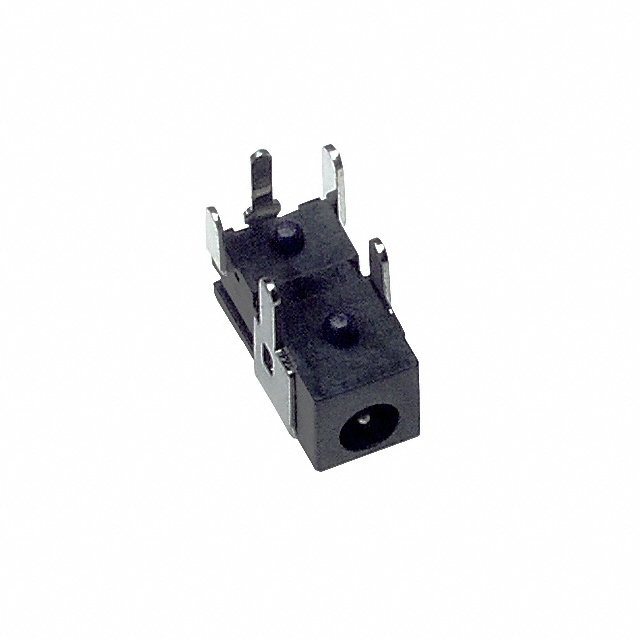

Power Barrel Connector Jack 0.70mm ID (0.028"), 2.35mm OD (0.093") EIAJ-1 Through Hole, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-023 |
|---|---|
| Actual Diameter (ID) | 0.026 in |
| Actual Diameter (OD) | 0.108 in |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Brass |
| Contact Material - Plating | Silver |
| Current Rating | 1 A |
| Features | Board Guide |
| Gender | Male |
| Housing Material | Nylon, Polyamide, PA |
| Industry Recognized Mating Diameter (ID) | 0.7 mm |
| Industry Recognized Mating Diameter (OD) | 2.35 mm |
| Industry Recognized Mating Diameter (Options) | EIAJ-1 |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Conductors | 2 |
| Number of Contacts | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Shielding | Shielded |
| Termination | Solder |
| Voltage - Rated | 16 V |
