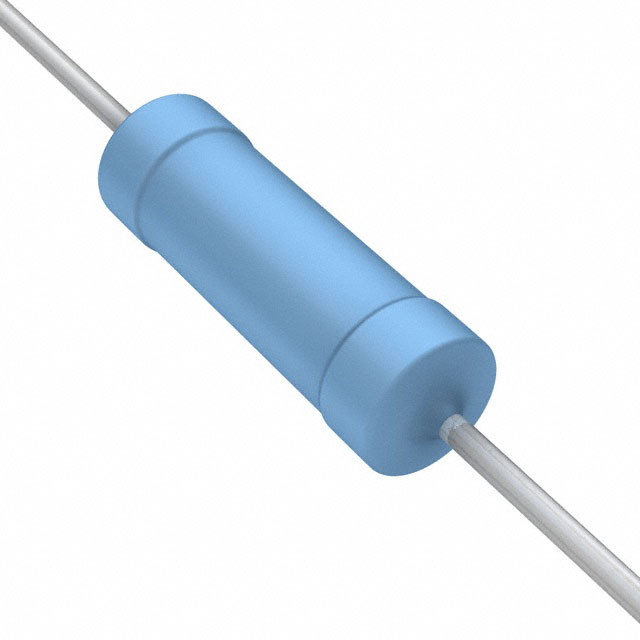

RNX03810M0FKR8
ObsoleteVishay Dale
RES 10M OHM 1% 1W AXIAL
RNX03810M0FKR8
ObsoleteVishay Dale
RES 10M OHM 1% 1W AXIAL
Description
General part information
RNX03810M0FKR8
10 MOhms ±1% 1W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Safety Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RNX03810M0FKR8 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Safety, Flame Retardant Coating, High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 10 MOhm |
| Size / Dimension Diameter | 0.14 in |
| Size / Dimension Length | 0.42 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
