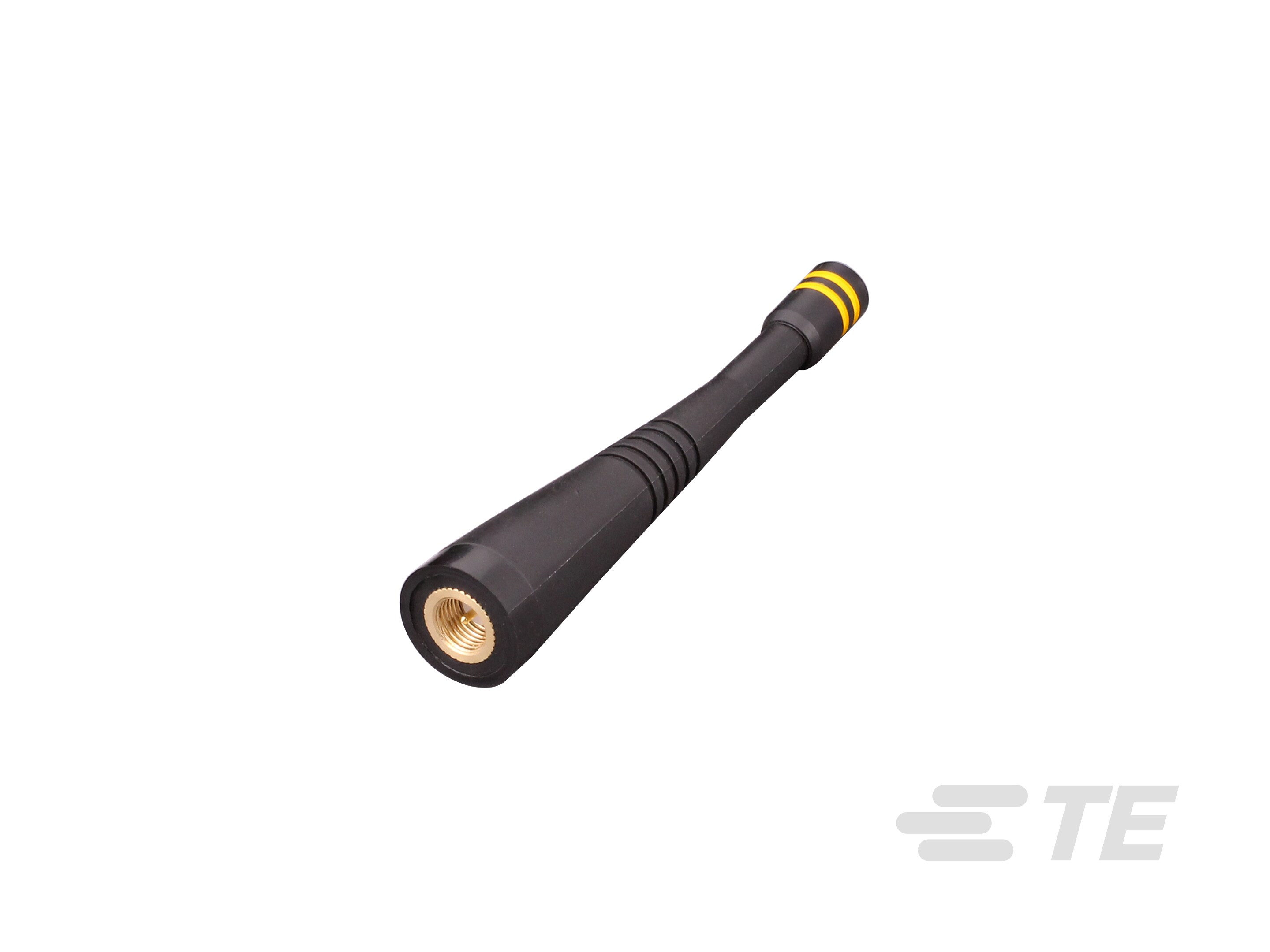

Specification	ANT-916-CW-QW-SMA

Antenna Type	Straight, Whip
Applications	Sensor Networks, LoRa, Sigfox, ISM
Frequency (Center/Band)	915MHz, 800MHz, 900MHz
Frequency Group	UHF
Frequency Group Maximum (UHF)	1 GHz
Frequency Group Minimum (UHF)	300 MHz
Frequency Range (Max)	965 MHz
Frequency Range (Min)	865 MHz
Gain	1.8 dBi
Height (Max)	3.15 in
Mounting Type	Connector Mount
Number of Bands	1
RF Family/Standard	General ISM
Termination Type	SMA Male
VSWR	1.9

ANT-916 Series

Part	Applications	VSWR	Frequency Group Maximum (UHF)	Frequency Group	Frequency Group Minimum (UHF)	Mounting Type	Number of Bands	Height (Max)	Termination	RF Family/Standard	Frequency (Center/Band)	Antenna Type	Frequency Range (Max)	Frequency Range (Min)	Gain	Features	Termination Type	Ingress Protection
TE Connectivity AMP Connectors ANT-916-USP-T	ISM LoRa Sensor Networks Sigfox	2	1 GHz	UHF	300 MHz	Surface Mount	1	0.1 in	Solder	General ISM	915 MHz	Chip	928 MHz	904 MHz	0.3 dBi
TE Connectivity AMP Connectors ANT-916-JJB-HT-T	ISM LoRa Sensor Networks Sigfox	2	1 GHz	UHF	300 MHz	Through Hole	1	0.48 in	Solder	General ISM	915 MHz	Straight Whip	928 MHz	902 MHz	-12.3 dBi
TE Connectivity AMP Connectors ANT-916-MHW-SMA-S	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Adhesive	1	5.433 in		General ISM	915 MHz	Center-Fed Double Whip	1.016 GHz	816 MHz	5.4 dBi	2m Cable	SMA Male
TE Connectivity AMP Connectors ANT-916-MHW-SMA-L	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Adhesive	1	5.433 in		General ISM	916 MHz	Center-Fed Double Whip	1.016 GHz	816 MHz	5.4 dBi	4.6m Cable	SMA Male
TE Connectivity AMP Connectors ANT-916-HESM	ISM LoRa Sensor Networks Sigfox	2	1 GHz	UHF	300 MHz	Surface Mount	1	0.35 in	Solder	General ISM	915 MHz	Helical	965 MHz	865 MHz	2.4 dBi
TE Connectivity AMP Connectors ANT-916-PW-QW-UFL	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Panel Mount	1	3.15 in	IPEX MHF1 U.FL (UMCC)	General ISM	915 MHz	Straight Whip	965 MHz	865 MHz	1.8 dBi	216mm Cable	I-PEX MHF1 U.FL
TE Connectivity AMP Connectors ANT-916-ID-2000-SMA	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Bracket Mount	1	4.906 in		General ISM	915 MHz	Straight Whip	945 MHz	895 MHz	1.6 dBi	2m Cable	SMA Male	IP67
TE Connectivity AMP Connectors ANT-916-USP	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Surface Mount	1	0.1 in	Solder	General ISM	915 MHz	Chip	928 MHz	904 MHz	0.3 dBi
TE Connectivity AMP Connectors ANT-916-CW-RAH-SMA		1.9	1 GHz	UHF	300 MHz	Connector Mount	1	1.829 in	SMA		916 MHz	Right Angle Whip	970 MHz	850 MHz	2.2 dBi
TE Connectivity AMP Connectors ANT-916-PW-LP	ISM LoRa Sensor Networks Sigfox	1.9	1 GHz	UHF	300 MHz	Panel Mount	1	1.988 in	Screw-Mount	General ISM	915 MHz	Straight Whip	951 MHz	881 MHz	2.4 dBi
