387001836
NRNDLaird Thermal Systems, Inc.
ET7,3,F1,2020,TA,RT,W4.5
387001836
NRNDLaird Thermal Systems, Inc.
ET7,3,F1,2020,TA,RT,W4.5
Description
General part information
387001836

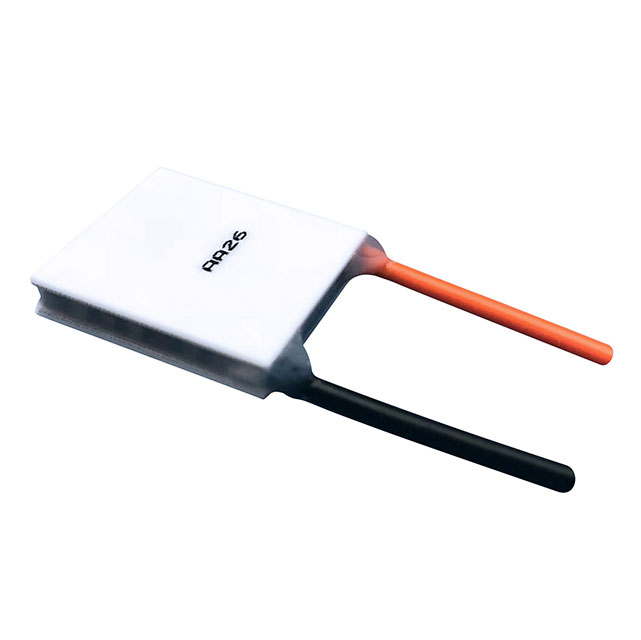

Peltier Module 16.7W @ 25°C 7.7 A
Technical Specifications
Parameters and characteristics for this part
| Specification | 387001836 |
|---|---|
| Current - Max | 7.7 A |
| Delta Tmax | 67 °C |
| Features | Silicone RTV, Lead Wires, Sealed |
| Height | 3.5 mm |
| Maximum Power Dissipation (Qmax) | 16.7 W |
| Number of Stages | 1 |
| Resistance | 431 mOhms |
| Size / Dimension Length | 20 mm |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 20 mm |
| Voltage - Max | 3.8 V |
