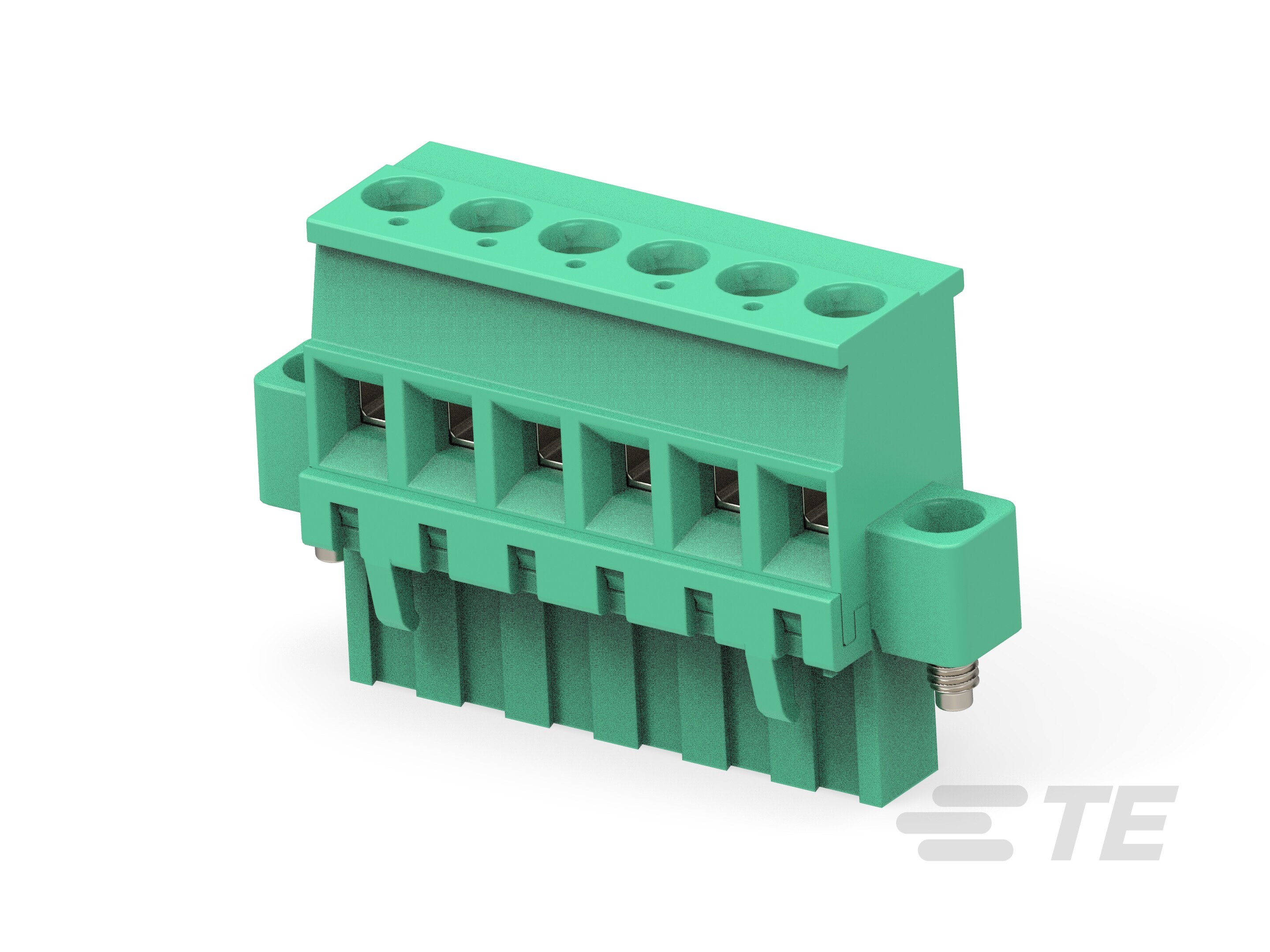

6 POS TERMI-BLOK PLUG VERTICAL-796863-6

796863-6

Active
TE Connectivity AMP Connectors

CONN EUROSTYLE BLOCK F 6 POS 5.08MM SCREW ST CABLE MOUNT 15A/CONTACT CARTON

Find alt
6 POS TERMI-BLOK PLUG VERTICAL-796863-6

796863-6

Active
TE Connectivity AMP Connectors

CONN EUROSTYLE BLOCK F 6 POS 5.08MM SCREW ST CABLE MOUNT 15A/CONTACT CARTON

Find alt

Description

General part information

796863-6

6 Position PCB Terminal Block, Plug, Wire-to-Board, 5.08 mm [.2 in] Centerline, 1 Row, 90° Wire Entry Angle, 30 – 12 AWG, .05 – 3 mm² Wire, 300 VAC

Technical Specifications

Parameters and characteristics for this part

Specification796863-6
ColorGreen
Contact Mating FinishTin
Current - UL15 A
FeaturesRetention Latches (Wire Side), Mating Flange
Mounting TypeFree Hanging (In-Line)
Number of Levels1
Number of Positions6
Operating Temperature (Max)110 °C
Operating Temperature (Min)-40 °C
Pitch5.08 mm
Plug Wire Entry Angle90 °
Positions Per Level6
Termination StyleScrew - Rising Cage Clamp
TypeFemale Sockets, Plug
Voltage - UL300 V
Wire Gauge or Range - AWG (Max)30 AWG
Wire Gauge or Range - AWG (Min)12 AWG
