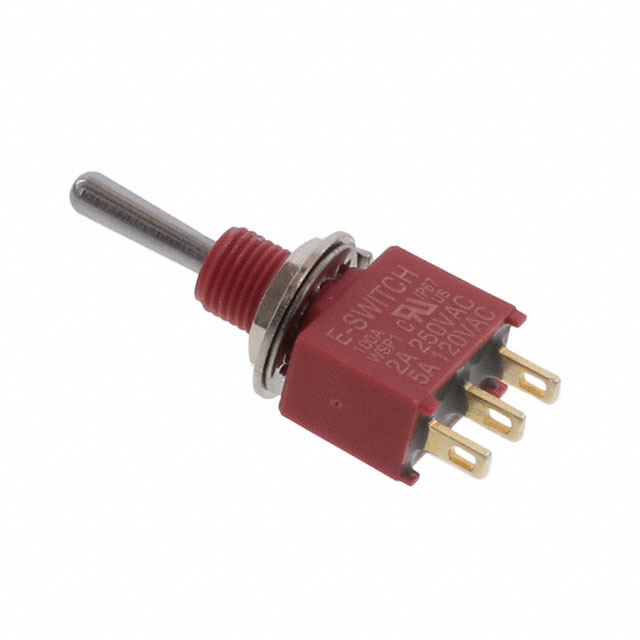

100AWSP1T1B1M1QEH

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

100AWSP1T1B1M1QEH

Active

E-Switch

SWITCH TOGGLE SPDT 5A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.49
		10	$ 3.12
		25	$ 2.96
		96	$ 2.69
		288	$ 2.57
		576	$ 2.35
		1056	$ 2.24

Description

General part information

100AWSP1 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100AWSP1T1B1M1QEH	100AWSP1 Series

Actuator Length [x]	10.41 mm	0.5 - 10.55 in
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	1/4-40	Unthreaded, 1/4-40
Circuit	SPDT	SPDT
Current Rating (Amps)	5 A	0.4 - 5 A
Electrical Life	30000 Cycles	30000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	-	Through Hole, Right Angle, Through Hole, Vertical, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Panel Cutout Dimensions [diameter]	0.25 in	0.25 in
Switch Function	On-On	On-On
Termination Style	Solder Lug	PC Pin, Solder Lug
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

100AWSP1 Series

SWITCH TOGGLE SPDT 5A 120V

Part	Voltage Rating - DC	Electrical Life	Ingress Protection	Current Rating (Amps)	Circuit	Bushing Thread	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Actuator Length [x]	Features	Actuator Material	Actuator Type	Mounting Type	Voltage Rating - AC	Illumination	Panel Cutout Dimensions [diameter]
E-Switch 100AWSP1T1B4M6QE	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	0.5 in	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Through Hole, Right Angle	120 V	Non-Illuminated
E-Switch 100AWSP1T2B4VS3QE	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	7.62 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Through Hole	120 V	Non-Illuminated
E-Switch 100AWSP1T2B1M1REH	20 V	30000 Cycles	IP67 - Dust Tight, Waterproof	0.4 VA	SPDT	1/4-40	On-On	-30 ░C	85 °C	Solder Lug	5.47 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round		20 V	Non-Illuminated	0.25 in
E-Switch 100AWSP1T1B4M7RE	20 V	30000 Cycles	IP67 - Dust Tight, Waterproof	0.4 VA	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	0.5 in	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Right Angle, Through Hole, Vertical	20 V	Non-Illuminated
E-Switch 100AWSP1T1B4VS21RE	20 V	30000 Cycles	IP67 - Dust Tight, Waterproof	0.4 VA	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	0.5 in	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Through Hole	20 V	Non-Illuminated
E-Switch 100AWSP1T2B1M7QEH	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	1/4-40	On-On	-30 ░C	85 °C	PC Pin	5.08 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Panel Mount, Right Angle, Vertical	120 V	Non-Illuminated	0.25 in
E-Switch 100AWSP1T2B4M7QE	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	Unthreaded	On-On	-30 ░C	85 °C	PC Pin	7.62 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round	Right Angle, Through Hole, Vertical	120 V	Non-Illuminated
E-Switch 100AWSP1T1B1M1RE	20 V	30000 Cycles	IP67 - Dust Tight, Waterproof	0.4 VA	SPDT	1/4-40	On-On	-30 ░C	85 °C	Solder Lug	10.41 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round		20 V	Non-Illuminated	0.25 in
E-Switch 100AWSP1T1B1M2QEH	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	1/4-40	On-On	-30 ░C	85 °C	PC Pin	10.55 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round		120 V	Non-Illuminated	0.25 in
E-Switch 100AWSP1T2B1M1QEH	28 V	30000 Cycles	IP67 - Dust Tight, Waterproof	5 A	SPDT	1/4-40	On-On	-30 ░C	85 °C	Solder Lug	5.08 mm	Epoxy Sealed Terminals	Brass, Chrome Plated	Standard Round		120 V	Non-Illuminated	0.25 in
