Description
General part information
2-5330808-7

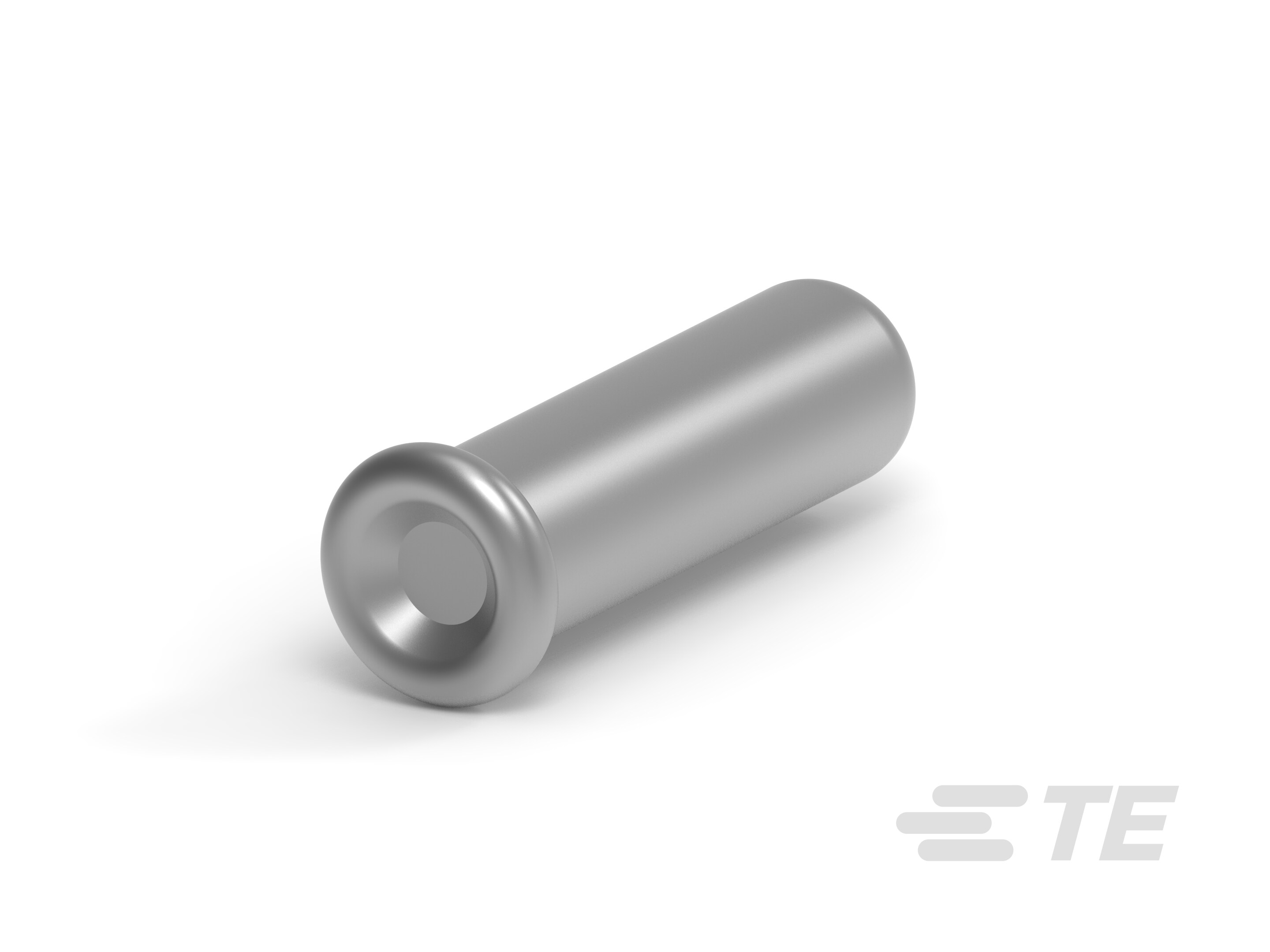

3.61 mm [.142 in] Socket Length, 1.04 mm [.041 in] PCB Hole, Closed Bottom, .081 – .162 mm² Wire, 28 – 25 AWG, Cable-to-Board, Signal, Pin Sockets
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-5330808-7 |
|---|---|
| Accepts Pin Diameter (Max) | 0.02 in |
| Accepts Pin Diameter (Min) | 0.013 in |
| Contact Finish | Tin |
| Contact Finish Thickness | 100 µin |
| Contact Material | Beryllium Copper |
| Flange Diameter | 0.059 in |
| Length - Overall | 0.142 in |
| Mounting Hole Diameter (Max) | 0.041 in |
| Mounting Hole Diameter (Min) | 0.04 in |
| Socket Depth | 0.13 in |
| Tail Type | No Tail |
| Termination | Solder |
