SD9F0000X/AA
ActiveMcGill Microwave Systems

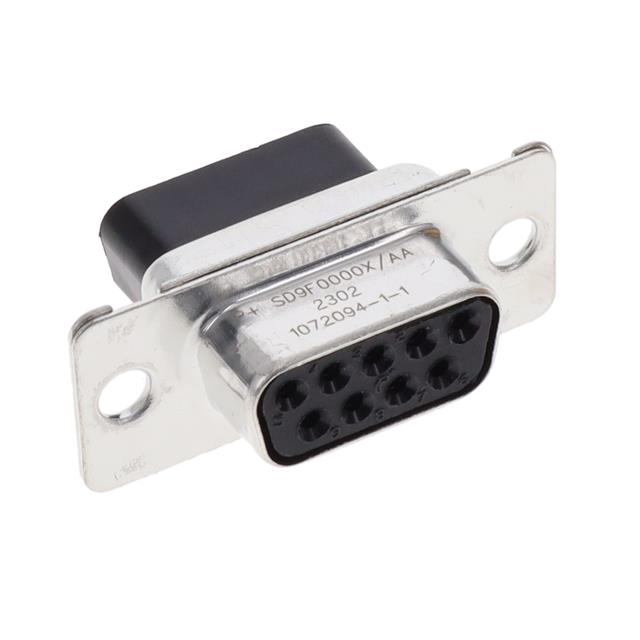

D SUB CONNECTOR HOUSING, 9 POSITIONS, D SUB, DE, SD SERIES, RECEPTACLE, STEEL BODY
SD9F0000X/AA
ActiveMcGill Microwave Systems
D SUB CONNECTOR HOUSING, 9 POSITIONS, D SUB, DE, SD SERIES, RECEPTACLE, STEEL BODY
Description
General part information
SD9F0000X/AA
Receptacle for Female Contacts Housing D-Sub Connector 9 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | SD9F0000X/AA |
|---|---|
| Color | Black |
| Connector Layout | DE, E |
| Connector Style | D-Sub |
| Connector Type | Receptacle for Female Contacts |
| Contact Type | Signal |
| Dielectric Material | Polyester, Polybutylene Terephthalate (PBT) |
| Features | Shielded |
| Finish | Tin Plated |
| Flange Feature | Shell (Unthreaded), Housing |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material | Steel |
| Shell Size | 1 |
