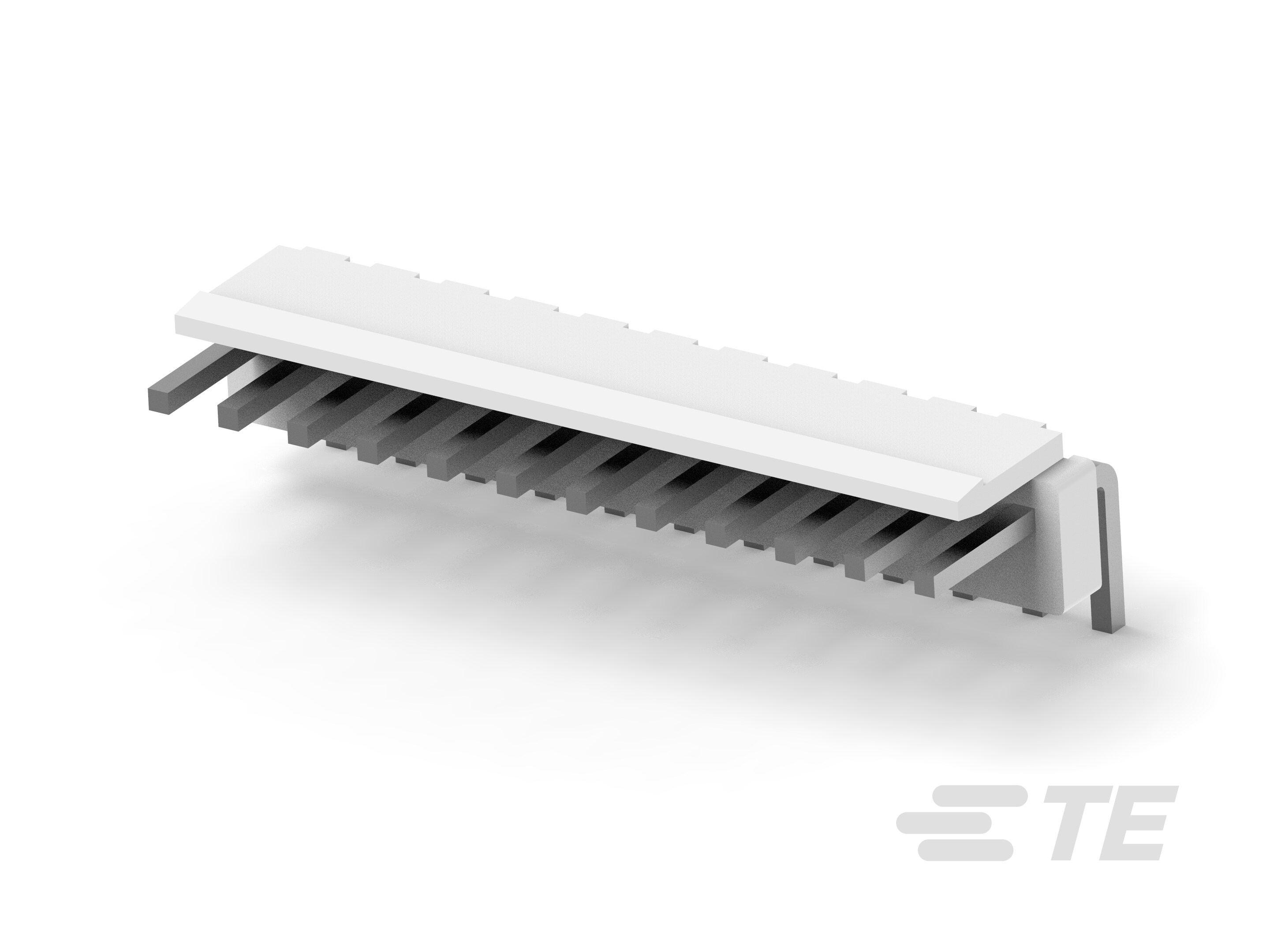

Specification	1-1744428-2

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	80 µin
Contact Length - Mating	0.338 in
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	7.5 A
Fastening Type	Locking Ramp
Features	Glow Wire Compliant
Insulation Height	0.339 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.156 in
Shrouding	Shrouded - 1 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V
