1958245-1
ActiveTE Connectivity AMP Connectors
TERMINAL,SOLIS R HR 1/0 5/16 20BEND
1958245-1
ActiveTE Connectivity AMP Connectors
TERMINAL,SOLIS R HR 1/0 5/16 20BEND
Description
General part information
1958245-1

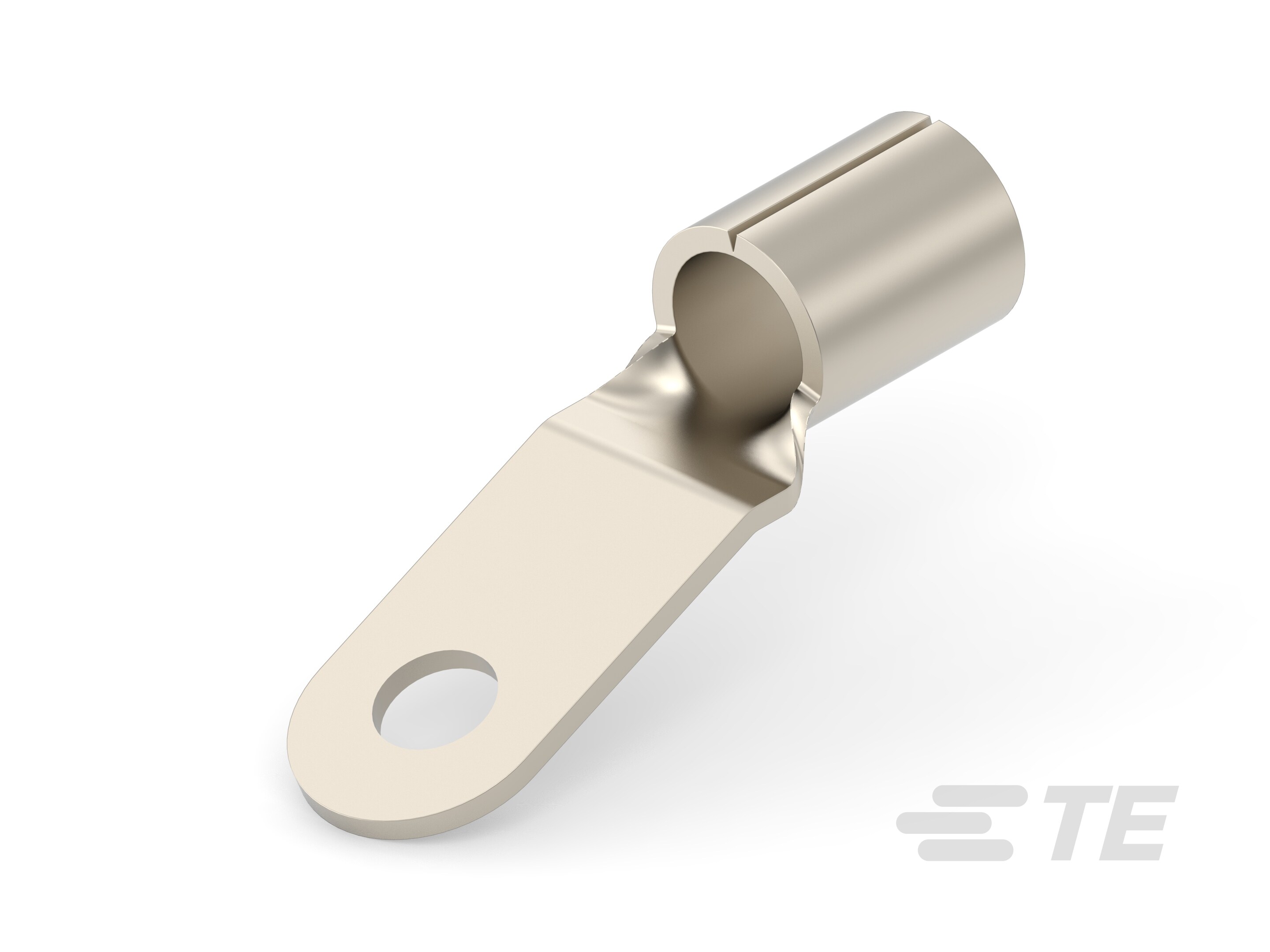

Closed Ring Tongue Terminal, 1/0 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Angled, Nickel Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 1958245-1 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line), 20° Angle |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Terminal Type | D-Shaped |
| Termination | Crimp |
| Thickness | 0.07 in |
| Width - Outer Edges | 0.704 in |
| Wire Gauge | 1/0 AWG |
