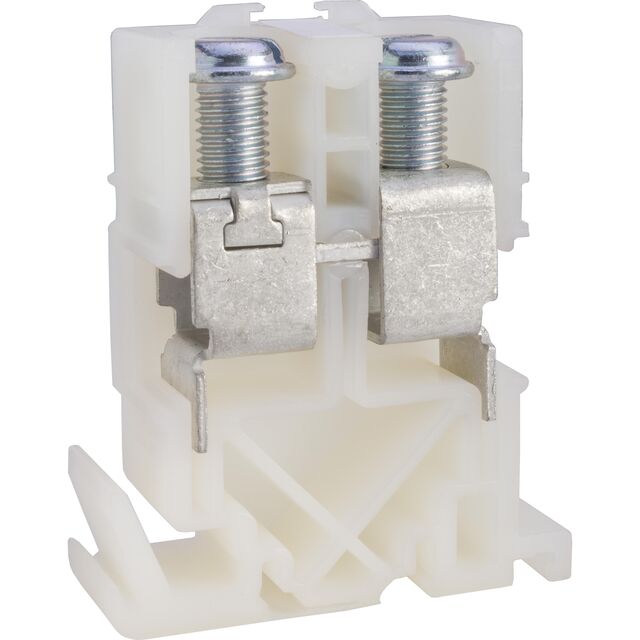

9080GD6
ActiveSCHNEIDER ELECTRIC
TERMINAL BLOCK 600V 170AMP NEMA
9080GD6
ActiveSCHNEIDER ELECTRIC
TERMINAL BLOCK 600V 170AMP NEMA
Description
General part information
9080GD6
Terminal Block Connector 2 Position Feed Through Natural 4-18 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 9080GD6 |
|---|---|
| Color | Natural |
| Current - UL | 180 A |
| Material - Insulation | Polyamide, PA, Nylon |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 17 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG (Max) | 18 AWG |
| Wire Gauge or Range - AWG (Min) | 4 AWG |
