PEWGS6017
ActivePasternack

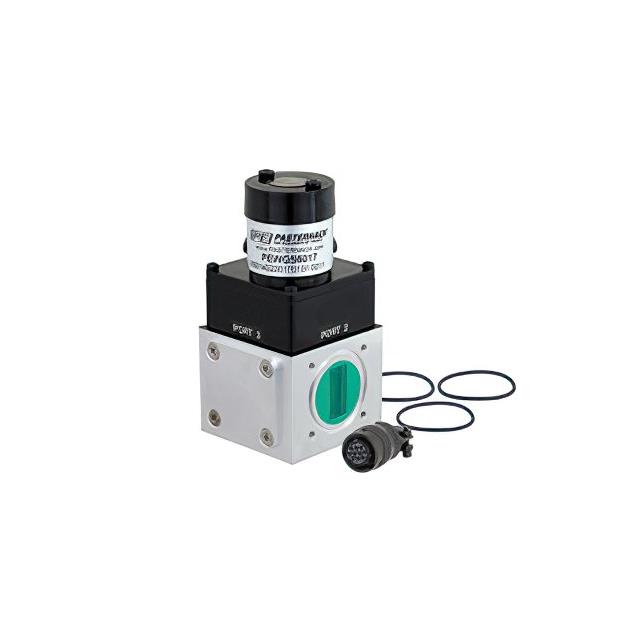

WR-90 WAVEGUIDE ELECTROMECHANICA
PEWGS6017
ActivePasternack
WR-90 WAVEGUIDE ELECTROMECHANICA
Description
General part information
PEWGS6017
RF Switch IC Radar, VSAT DPDT 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PEWGS6017 |
|---|---|
| Circuit | DPDT |
| Frequency Range (Max) | 12.4 GHz |
| Frequency Range (Min) | 8.2 GHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.05 dB |
| Isolation | 105 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| RF Type | VSAT, Radar |
| Topology | Absorptive |
| Voltage - Supply (Maximum) | 32 V |
| Voltage - Supply (Minimum) | 21 VDC |
