1057088-1
ActiveTE Connectivity AMP Connectors

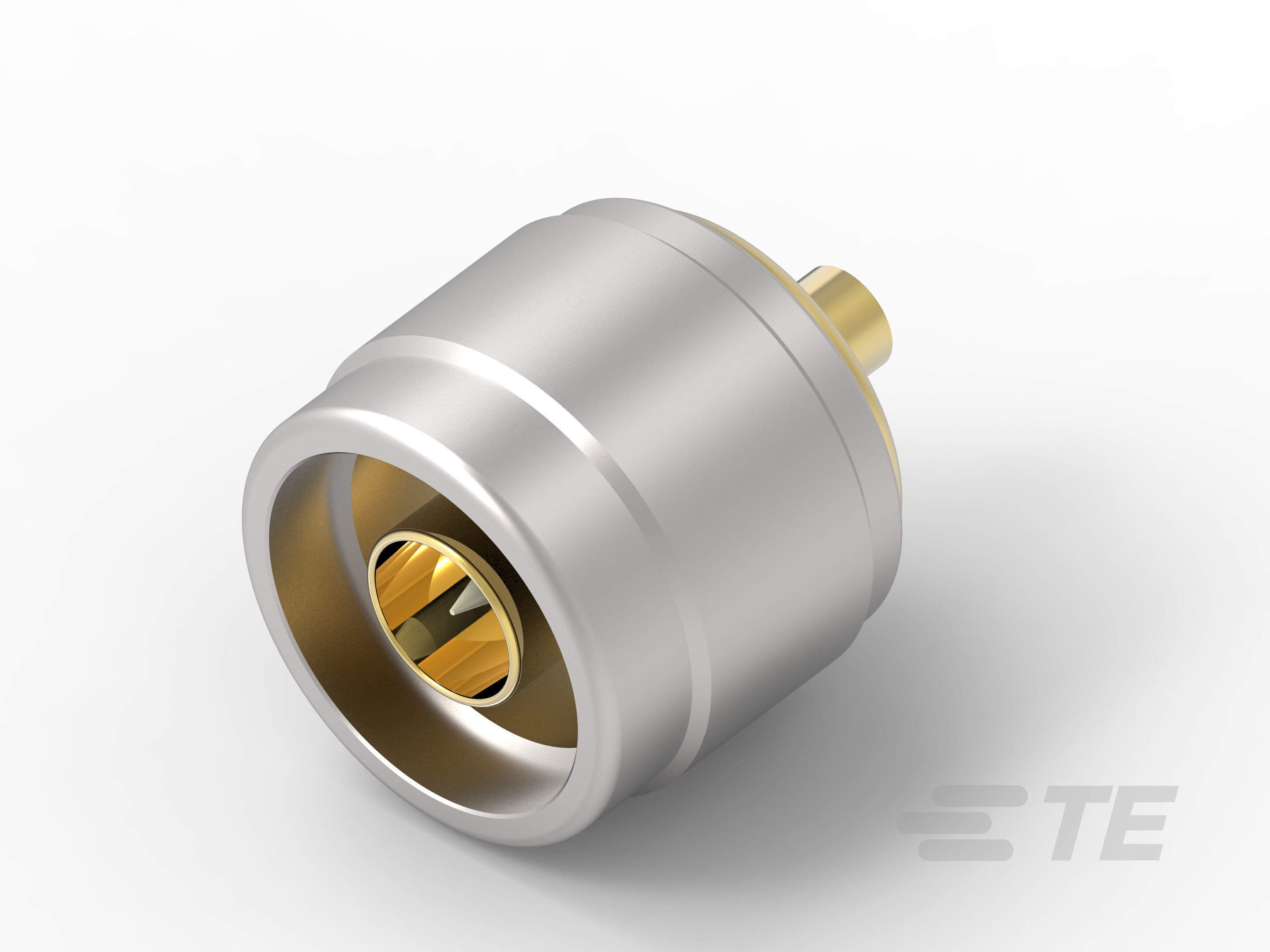

CONN N PLUG STR 50 OHM SOLDER
1057088-1
ActiveTE Connectivity AMP Connectors
CONN N PLUG STR 50 OHM SOLDER
Description
General part information
1057088-1
N Type Connector, Plug, 50 ohm, Threaded, 27 GHz, Cable-to-Cable, 1 Position, Sealable, Wire & Cable, -65 – 105 °C [-85 – 221 °F], Solder, Straight
Technical Specifications
Parameters and characteristics for this part
| Specification | 1057088-1 |
|---|---|
| Cable Group | RG-402 |
| Cable Group Diameter (Semi Rigid) | 0.141 in |
| Center Contact Material | Brass |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Threaded |
| Frequency - Max | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Solder |
