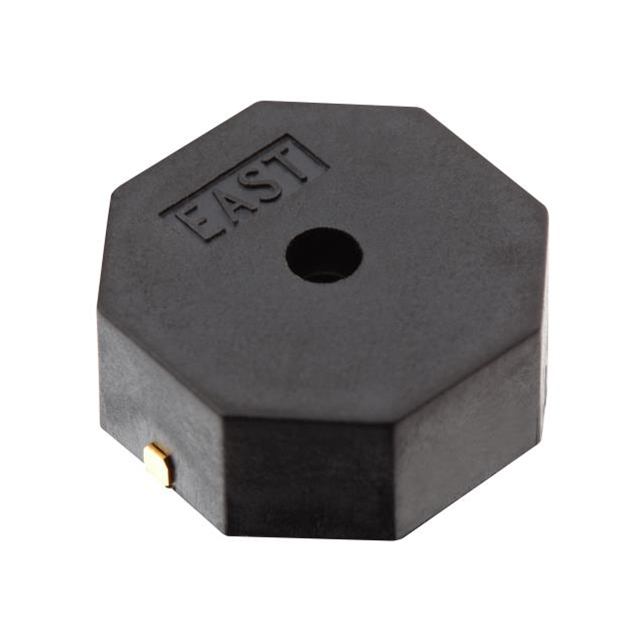

SFM-2325
ActiveEast Electronics
BUZZER 9V 0.906" L X 0.906" W TH
SFM-2325
ActiveEast Electronics
BUZZER 9V 0.906" L X 0.906" W TH
Description
General part information
SFM-2325
Buzzers 9 V 12mA 2.5kHz 88dB @ 9V, 10cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | SFM-2325 |
|---|---|
| Current - Supply | 12 mA |
| Frequency | 2.5 kHz |
| Height - Seated (Max) | 0.354 in |
| Mounting Type | Through Hole |
| Operating Mode | Continuous |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Size / Dimension Length | 0.906 in |
| Size / Dimension Width | 0.906 in |
| Sound Pressure Level (SPL) | 88 dB |
| Termination | PC Pins |
| Voltage - Rated | 9 VAC |
| Voltage Range (Max) | 30 VDC |
| Voltage Range (Min) | 1 V |
