NJM2207M
ObsoleteNisshinbo Micro Devices Inc.
IC VIDEO SGNL SUPERIMPOSER 14DMP
NJM2207M
ObsoleteNisshinbo Micro Devices Inc.
IC VIDEO SGNL SUPERIMPOSER 14DMP
Description
General part information
NJM2207M
Video Superimposer IC 14-DMP Package
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM2207M |
|---|---|
| Applications | Consumer Video |
| Function | Superimposer |
| Mounting Type | Surface Mount |
| Package Length | 0.197 " |

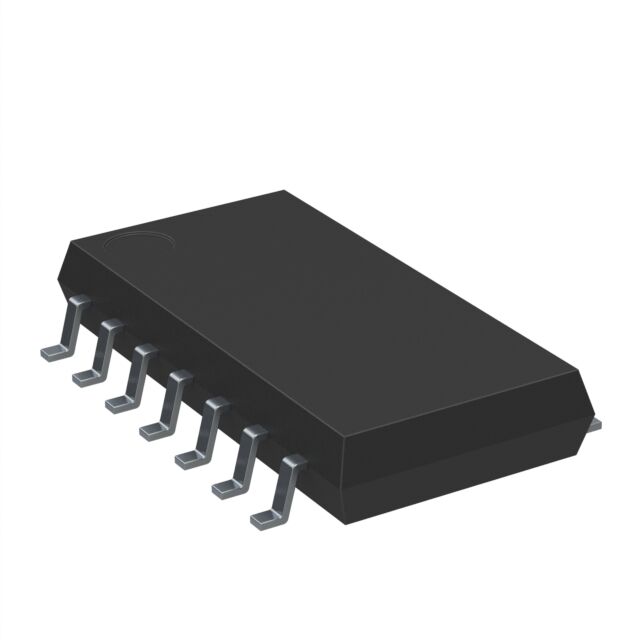

| Package Name | 14-DMP, 14-SOIC |
| Package Width | 5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
