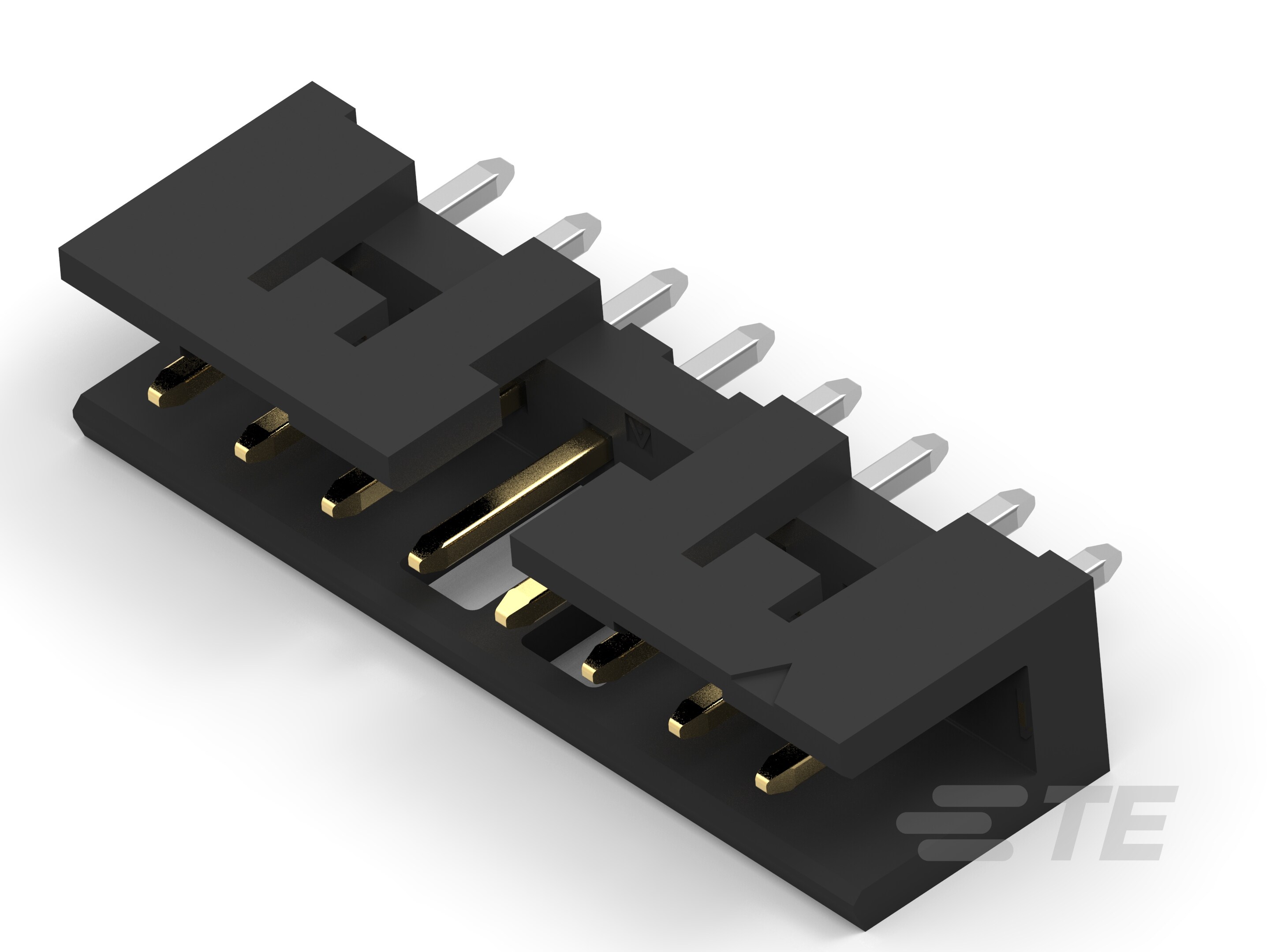

11P,2MM,SHRD HDR,SRVT,2.2,0.76AU,TRW/CAP-1-2823500-1

2MM-HSD-S12-VT-01-H-TBP

Active

TE Connectivity AMP Connectors

12P,2MM,SHRD HDR,SRVT,2.2,0.76AU,TBW/CAP

Find alt

Alpha

2MM-HSD-S12-VT-01-H-TBP

Active

TE Connectivity AMP Connectors

12P,2MM,SHRD HDR,SRVT,2.2,0.76AU,TBW/CAP

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

AMPMODU 2 mm Series

PCB Mount Header, Vertical, Board-to-Board, 12 Position, 2 mm [.079 in] Centerline, Partially Shrouded, Gold (Au), Through Hole - Solder, AMPMODU 2 mm

Technical Specifications

Parameters and characteristics for this part

Specification	2MM-HSD-S12-VT-01-H-TBP

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.157 in
Contact Length - Post	0.087 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	0.217 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Overall Contact Length	1.024 in
Pitch - Mating	0.079 in
Shrouding	Shrouded - 2 Wall
Style	Board
Termination	Solder
Voltage Rating	125 V
Voltage Rating (Type)	DC

AMPMODU 2 mm Series

...

Part	Number of Positions Loaded	Contact Type	Contact Finish - Post	Number of Positions	Connector Type	Insulation Material	Material Flammability Rating	Current Rating	Pitch - Mating	Contact Finish Thickness - Mating	Termination	Shrouding	Insulation Height	Contact Length - Post	Style	Contact Material	Insulation Color	Mounting Type	Contact Length - Mating	Contact Finish - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Features	Voltage Rating	Voltage Rating (Type)	Number of Rows	Fastening Type	Contact Shape	Row Spacing - Mating	Overall Contact Length
TE Connectivity AMP Connectors 2MM-HSD-S11-HT-01-F-TB	All	Male Pin	Tin	11	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	3.94 µin	Solder	Shrouded - 2 Wall	0.157 in	0.087 in	Board	Phosphor Bronze	Black	Right Angle Through Hole	0.157 in	Gold	-40 °C	105 °C	Pick and Place	125 V	DC	1	Detent Lock	Square
TE Connectivity AMP Connectors 2MM-HSP-S10-HT-01-H-TR	All	Male Pin	Tin	10	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	30 µin	Solder	Shrouded - 2 Wall	0.217 in	0.087 in	Board Board or Cable	Phosphor Bronze	Black	Right Angle Through Hole	0.157 in	Gold	-40 °C	125 °C		125 V	DC	1	Push-Pull	Square
TE Connectivity AMP Connectors 2MM-HSD-D12-VS-00-T-TBP	All	Male Pin	Tin	24 pos	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	100 µin	Solder	Shrouded - 2 Wall	0.217 in		Board Cable/Wire	Phosphor Bronze	Black	Surface Mount	0.157 in	Tin	-40 °C	105 °C	Pick and Place	125 V	DC	2	Detent Lock	Square	0.079 in
TE Connectivity AMP Connectors 2307813-4	All	Female Socket	Tin	4	Bottom or Top Entry Receptacle		UL94 V-0	2 A	0.079 in	3.94 µin	Solder		0.177 in		Board		Black	Surface Mount		Gold	-40 °C	125 °C	Pick and Place	125 V		1	Push-Pull
TE Connectivity AMP Connectors 2MM-RCD-D16-BX
TE Connectivity AMP Connectors 2MM-HSD-S13-VS-00-M-TBP	All	Male Pin	Tin	13	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	15 µin	Solder	Shrouded - 2 Wall	0.217 in		Board	Phosphor Bronze	Black	Surface Mount	0.157 in	Gold	-40 °C	125 °C	Pick and Place	125 V	DC	1	Latch Holder	Square
TE Connectivity AMP Connectors 2MM-HSD-S15-VS-00-F-TRP	All	Male Pin	Tin	15	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	3.94 µin	Solder	Shrouded - 2 Wall	0.217 in		Board	Phosphor Bronze	Black	Surface Mount	0.157 in	Gold	-40 °C	125 °C	Pick and Place	125 V	DC	1	Detent Lock	Square
TE Connectivity AMP Connectors 2MM-HSD-S06-HT-01-H-TB	All	Male Pin	Tin	6	Header	Thermoplastic	UL94 V-0	2 A	0.079 in	30 µin	Solder	Shrouded - 2 Wall	0.157 in	0.087 in	Board	Phosphor Bronze	Black	Right Angle Through Hole	0.157 in	Gold	-40 °C	105 °C	Pick and Place	125 V	DC	1	Detent Lock	Square
TE Connectivity AMP Connectors 2MM-HB-D07-VT-01-H-TB	All	Male Pin	Tin	14	Header	Liquid Crystal Polymer (LCP)	UL94 V-0	2 A	0.079 in	30 µin	Solder	Unshrouded	0.059 in	0.087 in	Board	Phosphor Bronze	Black	Through Hole	0.157 in	Gold	-40 °C	105 °C		250 V		2	Push-Pull	Square	0.079 in	0.303 in
TE Connectivity AMP Connectors 2MM-HSP-S08-VT-01-T-TBP	All	Male Pin	Tin	8	Header	Liquid Crystal Polymer (LCP)	UL94 V-0	2 A	0.079 in	118.1 µin	Solder	Shrouded - 2 Wall	0.217 in	0.087 in	Board Board or Cable	Phosphor Bronze	Black	Through Hole	0.157 in	Tin	-40 °C	105 °C	Pick and Place	250 V		1	Push-Pull	Square		0.709 in
