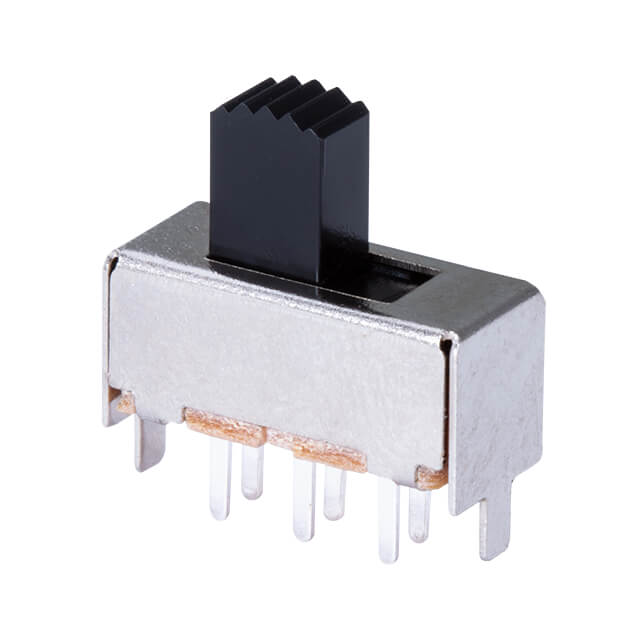

SLW-171175-7A-N-D
ActiveSame Sky (Formerly CUI Devices)
17 X 11 X 7.5 MM, 7 MM RAISED SL
SLW-171175-7A-N-D
ActiveSame Sky (Formerly CUI Devices)
17 X 11 X 7.5 MM, 7 MM RAISED SL
Description
General part information
SLW-171175-7A-N-D
Slide Switch DPDT Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | SLW-171175-7A-N-D |
|---|---|
| Actuator Length | 7 mm |
| Actuator Material | Polyoxymethylene (Acetal) (POM) |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Silver |
| Contact Material | Brass |
| Contact Timing | Non-Shorting (BBM) |
| Current Rating | 0.5 A |
| Electrical Life (Cycles) | 10000 Cycles |
| Mechanical Life (Cycles) | 10000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 0.25 kgf |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Switch Function | On-On |
| Switch Travel | 3.2 mm |
| Termination Style | PC Pin |
| Voltage Rating - DC | 50 V |
